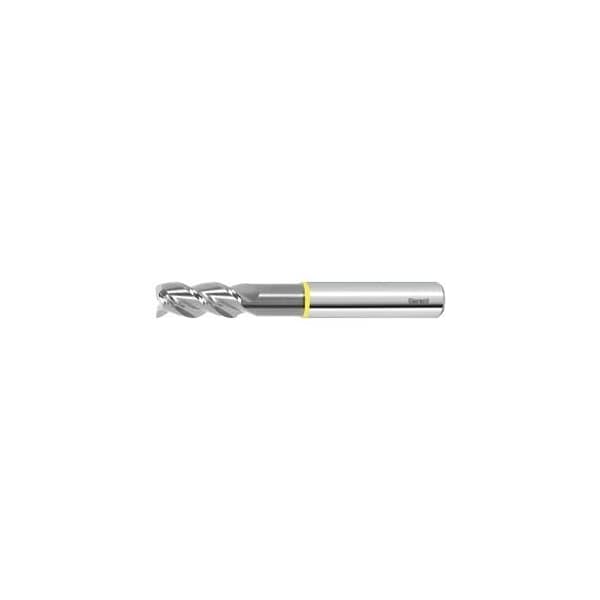

Solid Carbide MTC End Mill for Aluminum, Uncoated, 12 mm
Mfr # 202256 12
Zoro # G314383384
product price: $128.99
/ea
Free Shipping & Returns
Key Features
Corner Chamfer Angle
45 Degrees
Shank Form
HA
Tolerance Nominal Diameter
h6
Correction Factor Fz
1.25
Corner Chamfer Width at 45°
0.2 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202256 12
Zoro #
G314383384
UPC #
-
Country of Origin
Germany
Dimensions
Tolerance Nominal Diameter
h6
Corner Chamfer Width at 45°
0.2 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
12 mm
Maximum Cutting Depth Ap Max When Side Milling
26 mm
Min. Cutting Depth
0.3 mm
Overall Length
93 mm
Milling Diameter
12 mm
Length of Cut
26 mm
Shank Dia.
12 mm
Neck Dia.
11 mm
Description
Eccentric relief ground, additionally polish ground in the flutes for outstanding chip evacuation in long-chipping aluminium workpieces. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. h6 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 3 Flute length Lc: 26 mm Overhang length L1 incl. recess: 46 mm Recess Dia. D1: 11 mm Overall length L: 93 mm Shank Dia. Ds: 12 mm
