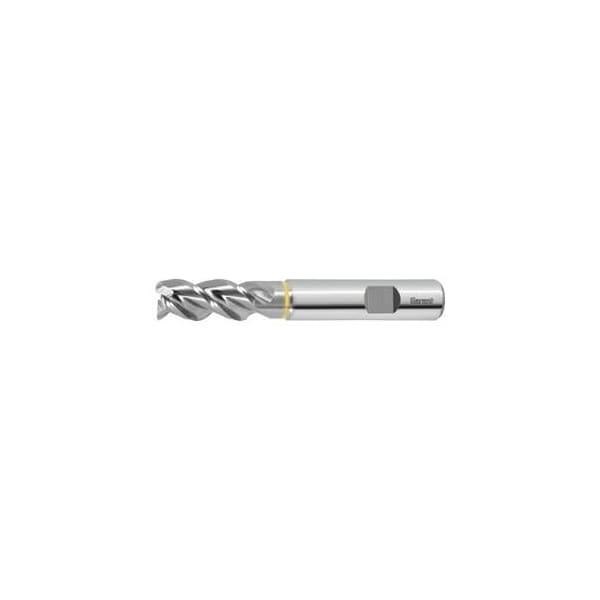

Solid Carbide MTC End Mill for Aluminum, Uncoated, 16 mm
Mfr # 202243 16
Zoro # G314383117
product price: $195.99
/ea
Free Shipping & Returns
Key Features
Coolant Through
No
Finish
uncoated
Length of Cut
36 mm
Cutting Direction
horizontal, oblique and vertical
Shank Dia.
16 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202243 16
Zoro #
G314383117
UPC #
-
Country of Origin
Germany
Dimensions
Length of Cut
36 mm
Shank Dia.
16 mm
Neck Dia.
15 mm
Overall Length
92 mm
Milling Diameter
16 mm
Tolerance Nominal Diameter
h6
Min. Cutting Depth
0.05 mm
Corner Chamfer Width at 45°
0.2 mm
Maximum Cutting Depth Ap Max When Side Milling
36 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
16 mm
Description
Eccentric relief ground, additionally polish ground in the flutes for outstanding chip evacuation in long-chipping aluminium workpieces. Lengths similar to DIN 6527 long. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. h6 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 Balance quality with shank: G 2.5 with HB No. of teeth Z: 3 Flute length Lc: 36 mm Overhang length L1 incl. recess: 42 mm Recess Dia. D1: 15 mm Overall length L: 92 mm Shank Dia. Ds: 16 mm
