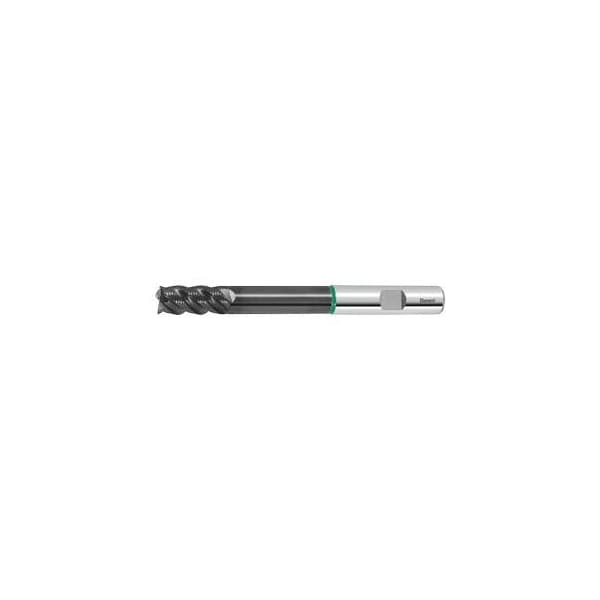

Solid Carbide Roughing End Mill, Coolant Through, for Stainless Steels, TiAlN Coated, 8 mm
Mfr # 205718 8
Zoro # G514381845
product price:Â
$
193.99
/ea
Free Shipping & Returns
Key Features
Overall Length
100 mm
Milling Diameter
8 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 205718 8
- Zoro #
- G514381845
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 100 mm
- Milling Diameter
- 8 mm
- Length of Cut
- 16 mm
- Corner Chamfer Width at 45°
- 0.2 mm
- Tolerance Nominal Diameter
- d11
- Maximum Cutting Depth Ap Max When Side Milling
- 16 mm
- Min. Cutting Depth
- 0.25 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 4 mm
- Shank Dia.
- 8 mm
- Neck Dia.
- 7.5 mm
Description
Dimensions similar to DIN 6527. optimized special knuckle profile for roughing. Very high rate of metal removal. Can be used as a universal end mill. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. d11 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 16 mm Overhang length L1 incl. recess: 50 mm Recess Dia. D1: 7.5 mm Overall length L: 100 mm Shank Dia. Ds: 8 mm
