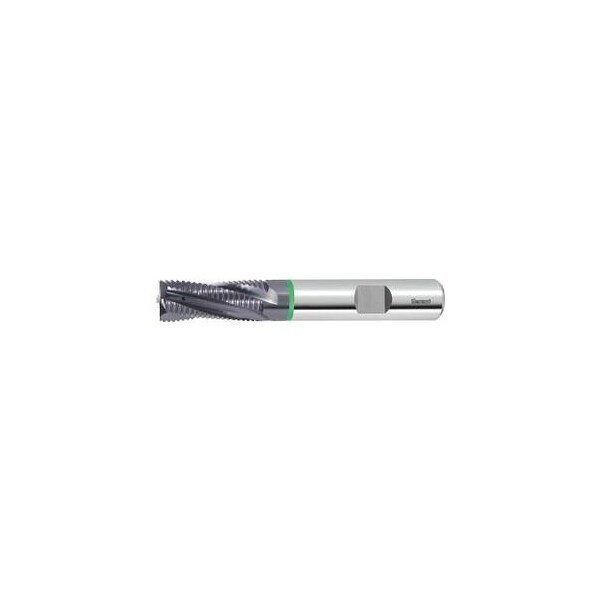

Solid Carbide Roughing End Mill, Coolant Through, TiAlN Coated, 16 mm
Mfr # 205592 16
Zoro # G414380801
product price:Â
$
520.99
/ea
Free Shipping & Returns
Key Features
Overall Length
92 mm
Milling Diameter
16 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 205592 16
- Zoro #
- G414380801
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 4
- End Mill Style
- Chamfer
- Finish
- TiAlN
- End Mill Cutting Type
- HPC
- Type of Product
- End Mill
- Shank Tolerance
- h6
- Milling profile
- HR
- Corner Chamfer Angle
- 45 Degrees
- Correction Factor Fz
- 1.25
- Feed Fz For Side Milling in Steel < 900Â N/mm2
- 0.1 mm
- Feed Fz For Slot Milling in Steel < 900Â N/mm2
- 0.08 mm
- Color Ring
- green
- Standard
- DIN 6527
- Coolant Through
- Yes
- End Mill Material
- Carbide
- Shank Type
- DIN 6535 HB to h6
- Cutting Direction
- horizontal, oblique and vertical
- Helix Angle
- 20 Degrees
- Feed Fz For Side Milling in Steel < 900 N/mm2
- 0.1 mm
- Feed Fz For Slot Milling in Steel < 900 N/mm2
- 0.08 mm
Description
With internal coolant supply. The coolant is fed directly to the cutting edges. This gives longer tool-life and complete swarf evacuation. This is especially important when milling slots or pockets. Tolerance nominal Dia. d11 No. of teeth Z: 4 Helix angle: 20 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 32 mm Overall length L: 92 mm Shank Dia. Ds: 16 mm Corner chamfer width at 45 Deg: 0.5 mm Feed fz for slot milling in steel < 900 N/mm2: 0.08 mm
