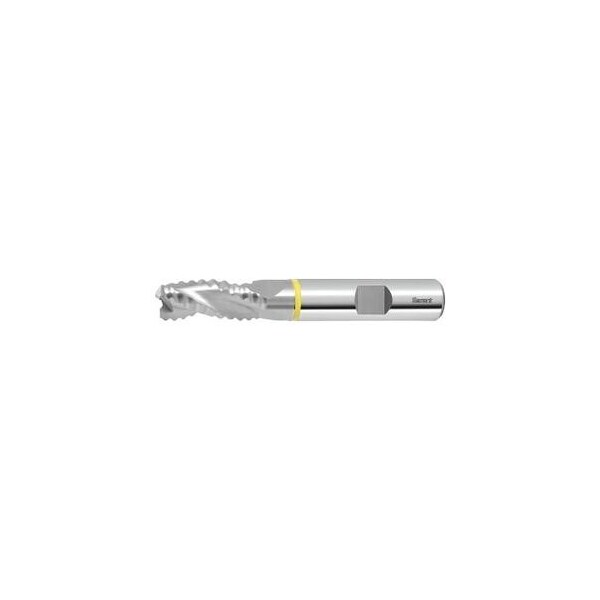

Solid Carbide Roughing End Mill, for Aluminum, Uncoated, 5 mm
Mfr # 205330 5
Zoro # G414384793
product price:Â $43.85
/eaKey Features
Overall Length
57 mm
Milling Diameter
5 mm
Number of Flutes
3
End Mill Style
Chamfer
Finish
uncoated
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
205330 5
Zoro #
G414384793
UPC #
-
Country of Origin
South Africa
Dimensions
Overall Length
57 mm
Milling Diameter
5 mm
Length of Cut
13 mm
Shank Dia.
6 mm
Neck Dia.
4.8 mm
Corner Chamfer Width at 45°
0.35 mm
Maximum Cutting Depth Ap Max When Side Milling
13 mm
Min. Cutting Depth
0.35 mm
Tolerance Nominal Diameter
d11
Maximum Cutting Depth Ap Max When Slot Milling From Solid
7.5 mm
Description
Dimensions similar to DIN 6527. Knuckle form profile. Special profile for machining non-ferrous metals. Through-coolant: no Tolerance nominal Dia. d11 No. of teeth Z: 3 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 13 mm Overhang length L1 incl. recess: 20.5 mm Recess Dia. D1: 4.8 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm
