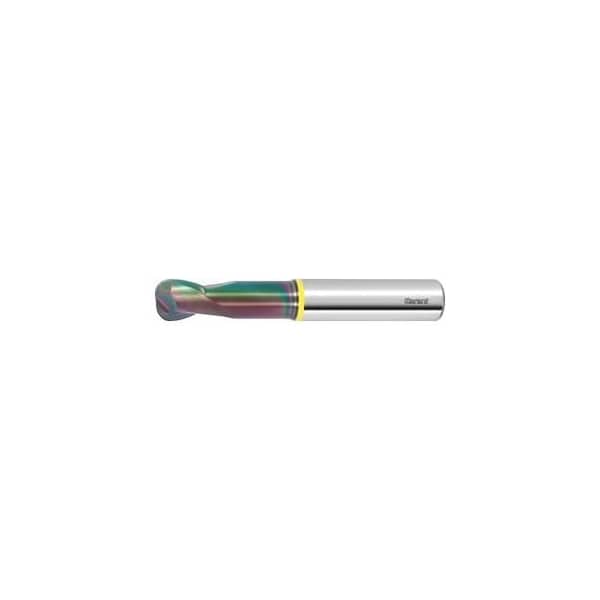

Solid Carbide Torus End Mill, for Aluminum, DLC Coated, 4/0.3 mm
Mfr # 206065 4/0,3
Zoro # G014384018
product price: $65.59
/eaKey Features
Correction Factor Fz
1.25
Maximum Cutting Depth Ap Max When Side Milling
5 mm
Tolerance Nominal Diameter
e8
Type of Product
Torus cutter
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.2 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
206065 4/0,3
Zoro #
G014384018
UPC #
-
Country of Origin
Germany
Dimensions
Maximum Cutting Depth Ap Max When Side Milling
5 mm
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.2 mm
Min. Cutting Depth
0.01 mm
Corner Radius
0.3 mm
Length of Cut
5 mm
Milling Diameter
4 mm
Neck Dia.
3.7 mm
Overall Length
50 mm
Shank Dia.
4 mm
Description
Tolerance: R1 = ±0.01 mm. With the latest generation of DLC coating sp2. With double relief ground side clearance angle and corner radius. High strength due to strengthened core. No. of teeth Z: 2 Helix angle: 30 degrees Shank: DIN 6535 HA to h6 No. of teeth Z: 2 Flute length Lc: 5 mm Corner radius R1: 0.3 mm Overhang length L1 incl. recess: 16 mm Recess Dia. D1: 3.7 mm Overall length L: 50 mm
