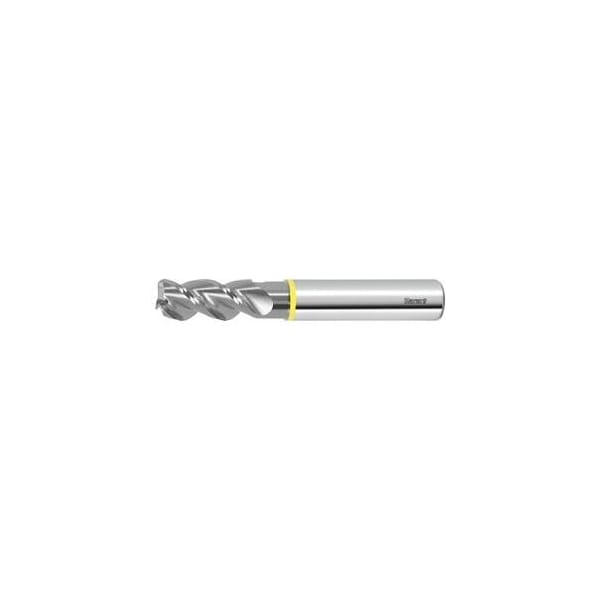

Solid Carbide Torus End Mill, for Aluminum, Uncoated, 6/0.5 mm
Mfr # 206190 6/0,5
Zoro # G414382829
product price: $45.25
/eaKey Features
Shank Tolerance
h6
Correction Factor Fz
1.25
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.18 mm
Type of Product
Torus cutter
Tolerance Nominal Diameter
h6
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
206190 6/0,5
Zoro #
G414382829
UPC #
-
Country of Origin
Germany
Dimensions
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.18 mm
Tolerance Nominal Diameter
h6
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Side Milling
13 mm
Overall Length
57 mm
Length of Cut
13 mm
Shank Dia.
6 mm
Milling Diameter
6 mm
Neck Dia.
5.7 mm
Corner Radius
0.5 mm
Description
Eccentric relief ground, additionally polish ground in the flutes for outstanding chip evacuation in long-chipping aluminium workpieces. Tolerances: Corner radiusR1 = 0.5 tolerance ±0.02. R1 > 0.5 1.5 tolerance ±0.03. R1 > 1.5 tolerance ±0.05. No. of teeth Z: 3 Helix angle: 45 degrees Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 3 Flute length Lc: 13 mm Corner radius R1: 0.5 mm Overhang length L1 incl. recess: 19 mm Recess Dia. D1: 5.7 mm Overall length L: 57 mm
