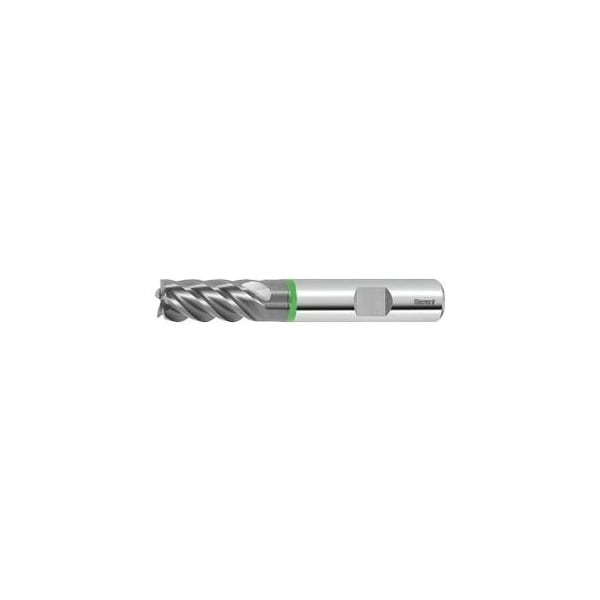

Solid Carbide TPC End Mill, TiAlN Coated, 8 mm
Mfr # 203088 8
Zoro # G714384899
product price:Â
$
89.99
/ea
Key Features
Milling Diameter
8 mm
Overall Length
63 mm
Number of Flutes
5
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 203088 8
- Zoro #
- G714384899
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 8 mm
- Overall Length
- 63 mm
- Length of Cut
- 19 mm
- Shank Dia.
- 8 mm
- Neck Dia.
- 7.8 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 19 mm
- Corner Chamfer Width at 45°
- 0.16 mm
- Average Chip Thickness Hmax for Tpc Milling In Toolox 44 HRC
- 0.045 mm
- Cutting Width Ae for Milling Operation
- 0.1×D
- Tolerance Nominal Diameter
- f8
- Min. Cutting Depth
- 0.4 mm
Description
High-performance milling cutter specially designed for general-purpose TPC applications. Strengthened core. optimized bending strength due to the use of ultra-fine grain substrates. Note: ae max = 0.1xD for TPC machining. hmax: The values stated in the table are maximum values. For finishing operations we recommend items No. 204012, 204014 and 204015. Tolerance nominal Dia. f8 No. of teeth Z: 5 Helix angle: 40 degrees Direction of infeed: horizontal and oblique Shank: DIN 6535 HB to h6 Balance quality with shank: G 2.5 with HB No. of teeth Z: 5 Flute length Lc: 19 mm Overhang length L1 incl. recess: 25 mm Recess Dia. D1: 7.8 mm Overall length L: 63 mm Shank Dia. Ds: 8 mm
