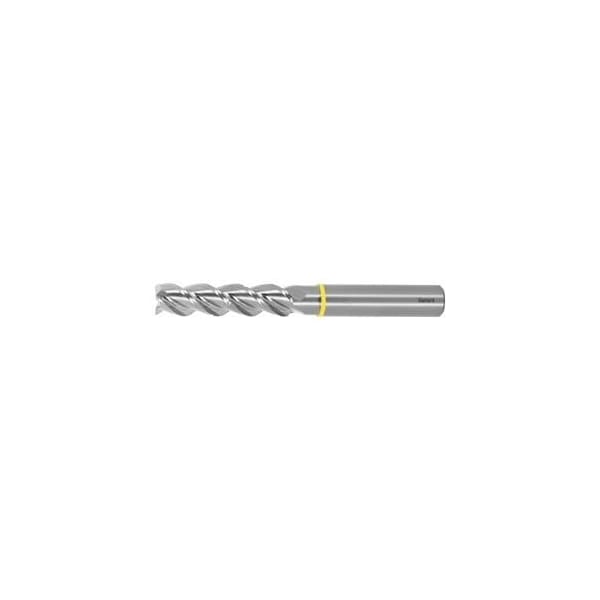

Solid Carbide TPC End Mill for Aluminum, Uncoated, 20 mm
- Mfr # 202281 20
- Zoro # G314384619
product price:Â
$
650.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
20 mm
Overall Length
154 mm
Number of Flutes
3
End Mill Style
Chamfer
Finish
uncoated
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 202281 20
- Zoro #
- G314384619
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 3
- End Mill Style
- Chamfer
- Finish
- uncoated
- End Mill Cutting Type
- TPC
- Shank Tolerance
- h6
- Shank Form
- HB
- Color Ring
- yellow
- Type of Product
- End Mill
- Corner Chamfer Angle
- 45 Degrees
- Cutting Direction
- horizontal, oblique and vertical
- Coolant Through
- No
- Helix Angle
- 45 Degrees
- Shank Type
- DIN 6535 HB to h6
- Overall Reach
- 100 mm
- Correction Factor Fz
- 3
- Maximum Cut Arc Angle
- 40.54 Degrees
- Type
- W
- End Mill Material
- Carbide
Dimensions
- Milling Diameter
- 20 mm
- Overall Length
- 154 mm
- Length of Cut
- 82 mm
- Cutting Width Ae for Milling Operation
- 0.12×D
- Corner Chamfer Width at 45°
- 0.2 mm
- Neck Dia.
- 19 mm
- Shank Dia.
- 20 mm
- Average Chip Thickness Hmax for Tpc Milling In Short-Chipping Aluminium
- 0.13 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 82 mm
- Tolerance Nominal Diameter
- h6
- Min. Cutting Depth
- 0.3 mm
Description
Eccentric relief ground, additionally polish ground in the flutes for outstanding chip evacuation in long-chipping aluminium workpieces. With double chip-breaker for exemplary chip formation. Note: ae max = 0.12xD for TPC machining. hmax: The values stated in the table are maximum values. Tolerance nominal Dia. h6 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 Balance quality with shank: G 2.5 with HB No. of teeth Z: 3 Flute length Lc: 82 mm Overhang length L1 incl. recess: 100 mm Recess Dia. D1: 19 mm Overall length L: 154 mm Shank Dia. Ds: 20 mm
