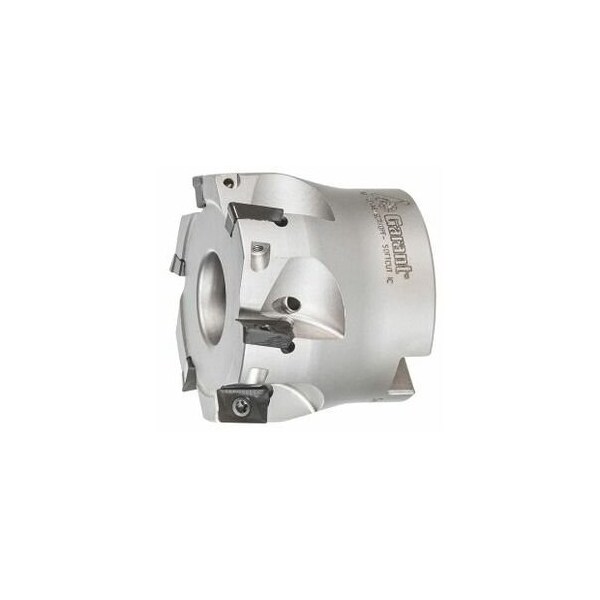

Square Shoulder Mill, with Bore, 50mm Diameter, 6 Inserts
Mfr # 215850 50/6
Zoro # G716121430
product price:Â
$
438.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
50 mm
Overall Length
40 mm
Cutting Angle
90°
Insert Screw
219814 (8IP; 1.2 Nm)
Fz Helix
0.5
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215850 50/6
- Zoro #
- G716121430
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 50 mm
- Overall Length
- 40 mm
- Free length
- 40 mm
- Diameter 3
- 47 mm
- Mounting Bore Dia.
- 22 mm
- Ramping Length for αmax
- 44.85 mm
Details
- Item
- End / face mill
- Cutting Angle
- 90°
- Insert Screw
- 219814 (8IP; 1.2 Nm)
- Fz Helix
- 0.5
- Shank Type
- with bore
- Number of Teeth
- 6
- Tool Exchange
- PowerCard
- Coolant Through
- Yes
- Dia/No. of Cutting Edges
- 50 mm/6
- Axial Rake Angle
- 3°
- Ramping Angle
- 0.32°
- Circular Interpolation Milling - Dmin
- 97 mm
- Circular Interpolation Milling - Dmax
- 98 mm
Description
Version: With bore for screw fixing. Application: Universal application in all materials. - Angle and slot milling- milling pockets- circular milling- bore milling- peripheral milling. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. - Change the insert screws after longer use of the indexable inserts. Ensure the insert screws are well greased before use e.g. with copper paste. Overall length Ltot: 40 mm Mounting bore : 22 mm Circular interpolation millingDmin: 97 mm Circular interpolation millingDmax: 98 mm Ramping angle max: 0.32 degrees Ramping length L for max: 44.85 mm
