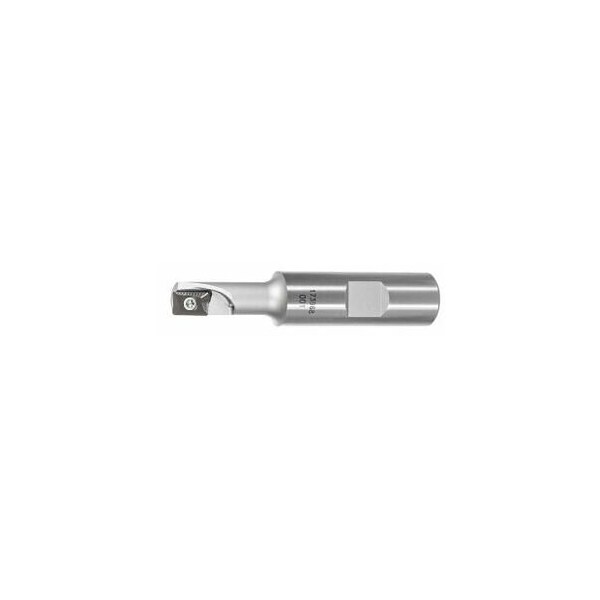

Square Shoulder Mill, with Weldon Flat, 10mm Diameter, 1 Inserts
Mfr # 215800 10/1
Zoro # G216121336
product price: $151.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
10 mm
Insert Screw
219814 (8IP; 1.2 Nm)
Cutting Angle
90°
Shank Dia.
16 mm
Overall Length
80 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215800 10/1
Zoro #
G216121336
UPC #
-
Country of Origin
Italy
Dimensions
Cutting Dia.
10 mm
Shank Dia.
16 mm
Overall Length
80 mm
Ramping Length for αmax
4.85 mm
Diameter 3
7 mm
Details
Insert Screw
219814 (8IP; 1.2 Nm)
Cutting Angle
90°
Item
End / face mill
Ramping Angle
2.94°
Axial Rake Angle
3°
Dia/No. of Cutting Edges
10 mm/1
Coolant Through
Yes
Circular Interpolation Milling - Dmin
17 mm
Circular Interpolation Milling - Dmax
18 mm
Tool Exchange
PowerCard
Shank Type
Weldon shank
Number of Teeth
1
Overhang
28 mm
Fz Helix
0.5
Description
Application: Universal application in all materials. - Angle and slot milling- milling pockets- circular milling- bore milling- peripheral milling. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. - Change the insert screws after longer use of the indexable inserts. Ensure the insert screws are well greased before use e.g. with copper paste. Cutting edgeDC: 10 mm Number of cutting edges Z: 1 Overhang L1: 28 mm Overall length Ltot: 80 mm ShankDs h6: 16 mm Circular interpolation millingDmin: 17 mm
