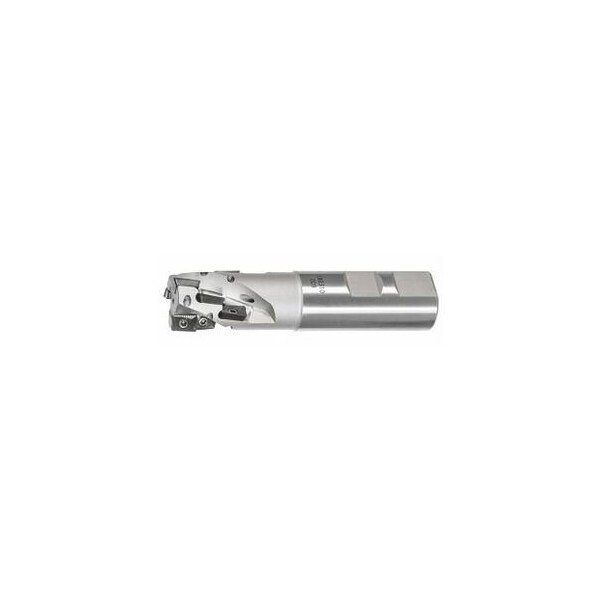

Square Shoulder Mill, with Weldon Flat, 25mm Diameter, 3 Effective Teeth
Mfr # 215860 25/3
Zoro # G516121395
product price:Â
$
737.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
25 mm
Overall Length
110 mm
Cutting Angle
90°
Insert Screw
219814 (8IP; 1.2 Nm)
Shank Dia.
25 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215860 25/3
- Zoro #
- G516121395
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 25 mm
- Overall Length
- 110 mm
- Shank Dia.
- 25 mm
- Max. Cutting Depth
- 28 mm
Details
- Item
- End / face mill
- Cutting Angle
- 90°
- Insert Screw
- 219814 (8IP; 1.2 Nm)
- Overhang
- 52 mm
- Coolant Through
- Yes
- Number of Effective Inserts
- 3
- Dia/Effective Teeth
- 25 mm/3
- Shank Type
- Weldon shank
- Number of Indexable Inserts
- 9
- Milling Application
- End milling
- Tool Exchange
- PowerCard
Description
Version: Very high metal removal rate- as 2 or 3 cutting edges are in action during each rotation. Application: For peripheral milling and side milling. Note: Not for ramping or circular plunging! Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Number of effective inserts Zeff: 3 Number of indexable inserts: 9 maximum cutting depth ap max: 28 mm Overhang L1: 52 mm Overall length Ltot: 110 mm ShankDs h6: 25 mm
