Shop GARANT

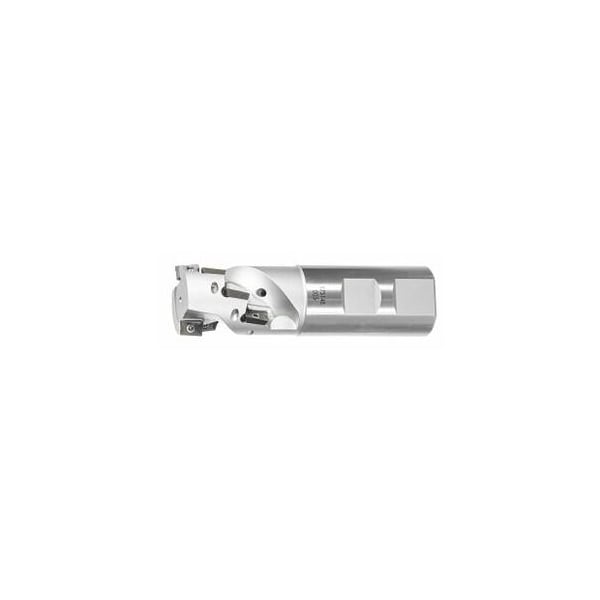

Square Shoulder Mill, with Weldon Flat, 32mm Diameter, 2 Effective Teeth

  • Mfr # 215860 32/2

  • Zoro # G216121428

product price:  $603.99
/ea
Free Shipping & Returns

Key Features

Cutting Dia.
32 mm
Overall Length
114 mm
Cutting Angle
90°
Insert Screw
219814 (8IP; 1.2 Nm)
Shank Dia.
32 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
215860 32/2
Zoro #
G216121428
UPC #
-
Country of Origin
Italy

Dimensions

Cutting Dia.
32 mm
Overall Length
114 mm
Shank Dia.
32 mm
Max. Cutting Depth
38 mm

Details

Item
End / face mill
Cutting Angle
90°
Insert Screw
219814 (8IP; 1.2 Nm)
Shank Type
Weldon shank
Number of Indexable Inserts
8
Tool Exchange
PowerCard
Overhang
54 mm
Milling Application
End milling
Number of Effective Inserts
2
Dia/Effective Teeth
32 mm/2
Coolant Through
Yes

Description

Version: Very high metal removal rate- as 2 or 3 cutting edges are in action during each rotation. Application: For peripheral milling and side milling. Note: Not for ramping or circular plunging! Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Number of effective inserts Zeff: 2 Number of indexable inserts: 8 maximum cutting depth ap max: 38 mm Overhang L1: 54 mm Overall length Ltot: 114 mm ShankDs h6: 32 mm
