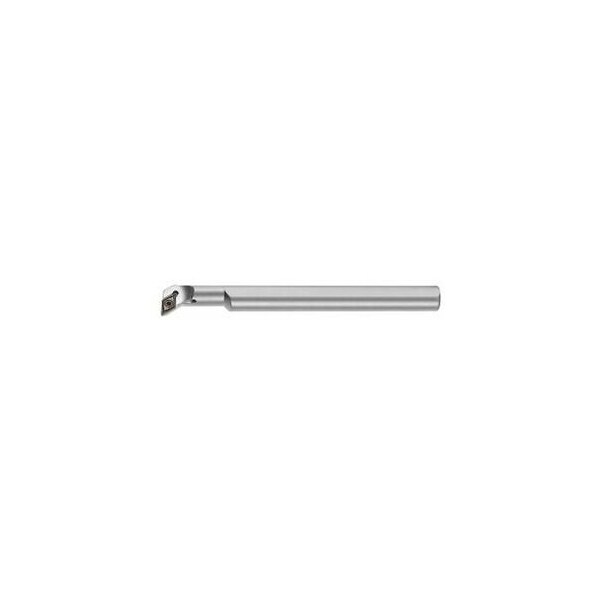

Steel Boring Bar, A1012K SDUCR07, for DC 2 Inserts, Right-Hand
Mfr # 260342 1012/07
Zoro # G514820382
product price: $139.99
/ea
Free Shipping & Returns
Key Features
Size
1012/07
Clamping Height
11 mm
ISO Number
A1012K SDUCR/L07
Coolant Through
Yes
Shank Dia.
12 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260342 1012/07
Zoro #
G514820382
UPC #
-
Country of Origin
Taiwan, Province of China
Dimensions
Size
1012/07
Clamping Height
11 mm
Shank Dia.
12 mm
Min. Pre-Drill Diameter Dmin
15.5 mm
Usable Depth
5.9 mm
Overall Length
125 mm
Insert Size
7 mm
Neck Width
9 mm
Head Length
27.5 mm
Max. Bore Dia.
3 x D
Details
ISO Number
A1012K SDUCR/L07
Coolant Through
Yes
Setting Angle
93 Angle
Insert Shape
55 Degrees Diamond
Item
Boring bar
Application
Internal longitudinal turning
Center Offset
9 mm
Shank Type
Boring bar
Cutting Direction
Right-Hand
Description
Boring bar steel 1012/07 mmStandard: Works standard Shank Diameters: 12 mm ISO code toolholder: A1012K SDUCR/L07 Setting angle k: 93 degrees suitable indexable insert: DC 0702 Minimum pre-drill Diametermin: 15.5 mm Center offset L3: 9 mm
