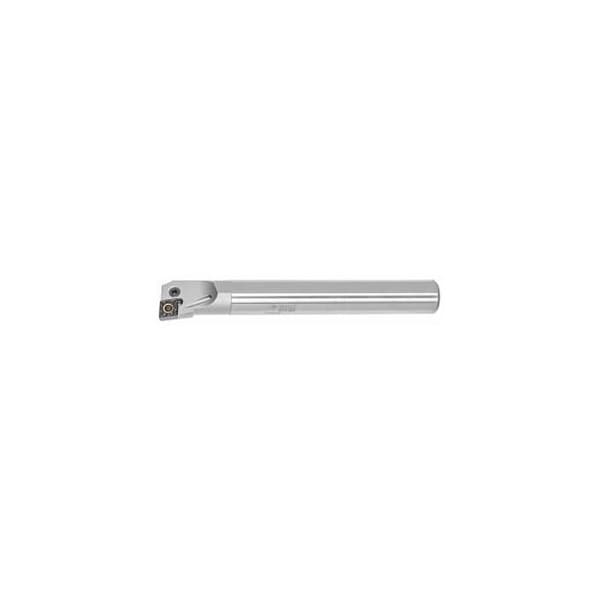

Steel Boring Bar, A16M PCLNR/L09, for CN 3 Inserts, Right-Hand
Mfr # 250036 16/09
Zoro # G114820546
product price:Â
$
217.99
/ea
Free Shipping & Returns
Key Features
Overall Length
150 mm
Insert Shape
Diamond
Clamping Height
15.25 mm
Setting Angle
95 Degrees
Left/Right Hand
Right-Hand
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 250036 16/09
- Zoro #
- G114820546
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 150 mm
- Clamping Height
- 15.25 mm
- Insert Size
- 9 mm
- Size
- 16/09 mm
- Free length
- 75 mm
- Shank Dia.
- 16 mm
Details
- Insert Shape
- Diamond
- Setting Angle
- 95 Degrees
- Left/Right Hand
- Right-Hand
- Type
- Boring bar
- Application
- Internal longitudinal turning
- Cutting Direction
- Right-Hand
- Inscribed Circle
- 3/8 in
- Standard
- DIN 8024
- Center Offset
- 11 mm
Description
PCLNR 95 Deg boring bars for indexable inserts CN.. Through-coolant: yes Standard: DIN 8024 Shank Diameters: 16 mm ISO code toolholder: A16M PCLNR/L09 Setting angle k: 95 degrees suitable indexable insert: CN.. 09T3.. Minimum pre-drill Diametermin: 20 mm Center offset L3: 11 mm
