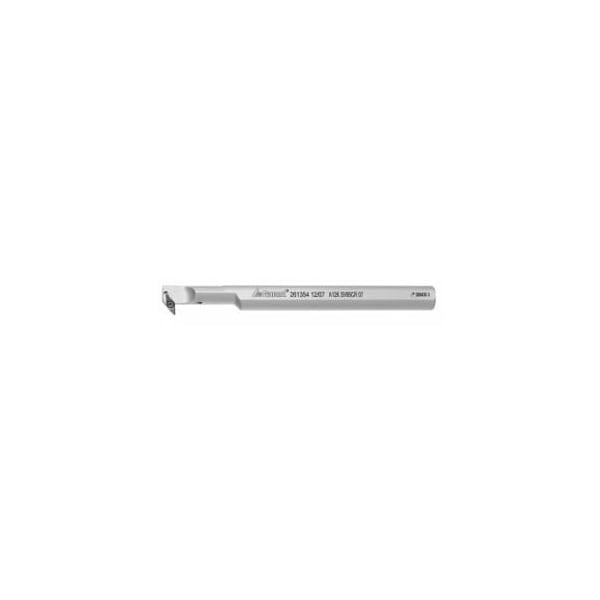

Steel Boring Bar, A16M SV95CR07, for VC 07 Inserts, Right-Hand
Mfr # 261354 16/07
Zoro # G814820280
product price: $144.99
/ea
Free Shipping & Returns
Key Features
Size
16/07
Max. Bore Dia.
3 x D
Application
External longitudinal turning
Head Length
36 mm
Insert Shape
35 Degrees Diamond
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
261354 16/07
Zoro #
G814820280
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Size
16/07
Max. Bore Dia.
3 x D
Head Length
36 mm
Neck Width
12.9 mm
Insert Size
7 mm
Cutting Width
11.5 mm
Overall Length
150 mm
Shank Dia.
16 mm
Min. Pre-Drill Diameter Dmin
19.5 mm
Usable Depth
5 mm
Clamping Height
15 mm
Details
Application
External longitudinal turning
Insert Shape
35 Degrees Diamond
Item
Boring bar
Setting Angle
95 Angle
Coolant Through
Yes
Center Offset
11 mm
Cutting Direction
Right-Hand
Shank Type
Boring bar
ISO Number
A16M SV95CR/L07
Description
Boring bar, steel 16/07 mmStandard: Works standard Shank Diameters: 16 mm ISO code toolholder: A16M SV95CR/L07 Setting angle k: 95 degrees suitable indexable insert: VC 0702 Minimum pre-drill Diametermin: 19.5 mm Center offset L3: 11 mm
