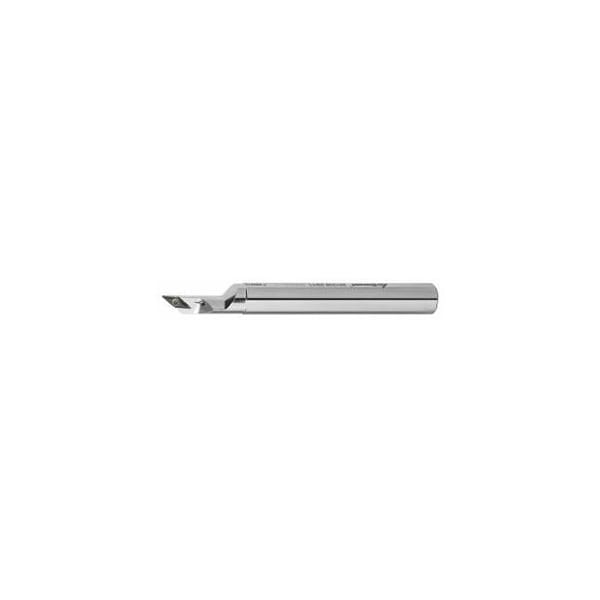

Steel Boring Bar, A20Q SVJCL11, for VC 2 Inserts, Left-Hand
Mfr # 261339 20/11
Zoro # G214821306
product price:Â
$
232.99
/ea
Free Shipping & Returns
Key Features
Overall Length
180 mm
Insert Shape
35 Degrees Diamond
Size
20/11
Head Length
38 mm
Setting Angle
142 Angle
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 261339 20/11
- Zoro #
- G214821306
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 180 mm
- Size
- 20/11
- Head Length
- 38 mm
- Max. Bore Dia.
- 3 x D
- Clamping Height
- 19 mm
- Neck Width
- 11 mm
- Insert Size
- 11 mm
- Min. Pre-Drill Diameter Dmin
- 24 mm
- Shank Dia.
- 20 mm
- Free Length
- 80 mm
Details
- Item
- Boring Bar
- Insert Shape
- 35 Degrees Diamond
- Setting Angle
- 142 Angle
- Center Offset
- 2 mm
- Shank Type
- Boring bar
- ISO Number
- A20Q SVJCR/L11
- Application
- Internal longitudinal turning
- Coolant Through
- Yes
- Insert Assignment
- right-hand and neutral
- Cutting Direction
- Left-Hand
Description
Boring bar steel 20/11 mmStandard: Works standard Shank Diameters: 20 mm ISO code toolholder: A20Q SVJCR/L11 Setting angle k: 142 degrees suitable indexable insert: VC 1103 Minimum pre-drill Diametermin: 24 mm Center offset L3: 2 mm
