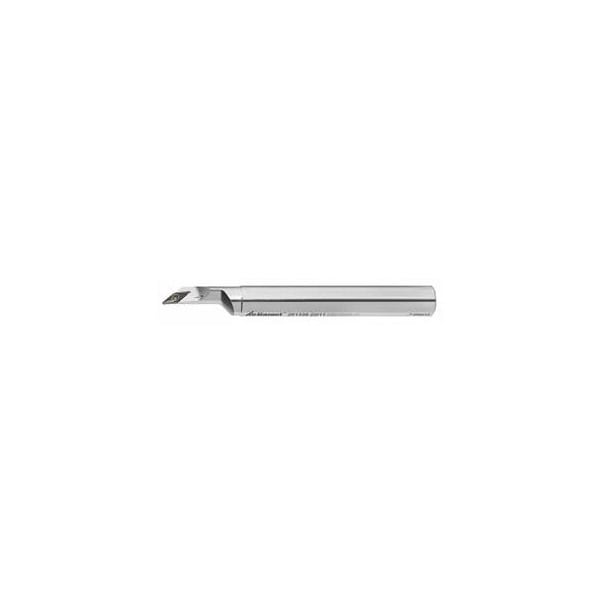

Steel Boring Bar, A20Q SVJCR11, for VC 2 Inserts, Right-Hand
Mfr # 261338 20/11
Zoro # G514821372
product price: $232.99
/ea
Free Shipping & Returns
Key Features
Size
20/11
Neck Width
11 mm
Max. Bore Dia.
3 x D
Insert Shape
35 Degrees Diamond
Cutting Direction
Right-Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
261338 20/11
Zoro #
G514821372
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Size
20/11
Neck Width
11 mm
Max. Bore Dia.
3 x D
Shank Dia.
20 mm
Free Length
80 mm
Min. Pre-Drill Diameter Dmin
24 mm
Insert Size
11 mm
Overall Length
180 mm
Head Length
38 mm
Clamping Height
19 mm
Details
Insert Shape
35 Degrees Diamond
Cutting Direction
Right-Hand
Application
Internal longitudinal turning
Coolant Through
Yes
Insert Assignment
left-hand and neutral
Item
Boring bar
Shank Type
Boring bar
ISO Number
A20Q SVJCR/L11
Setting Angle
142 Angle
Center Offset
2 mm
Description
Boring bar steel 20/11 mmStandard: Works standard Shank Diameters: 20 mm ISO code toolholder: A20Q SVJCR/L11 Setting angle k: 142 degrees suitable indexable insert: VC 1103 Minimum pre-drill Diametermin: 24 mm Center offset L3: 2 mm
