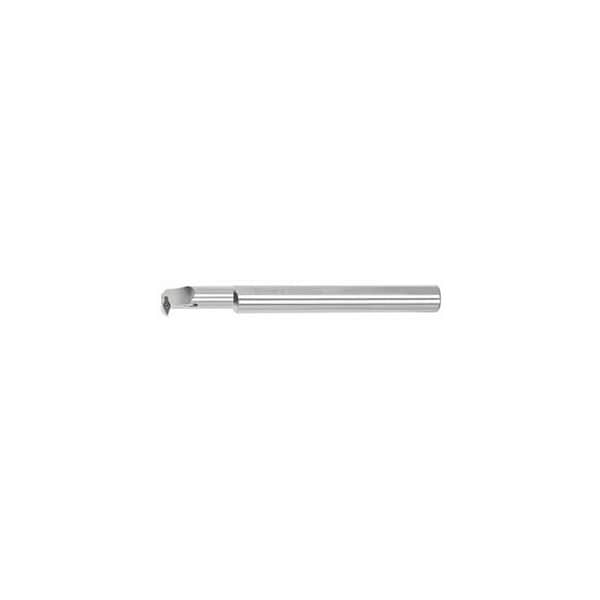

Steel Boring Bar, A20Q SVVCR11, for VC 2 Inserts, Right-Hand
Mfr # 261352 20/11
Zoro # G914820463
product price: $237.99
/ea
Free Shipping & Returns
Key Features
Size
20/11
Usable Depth
9,5 mm
Min. Pre-Drill Diameter Dmin
25 mm
Clamping Height
19 mm
Max. Bore Dia.
3 x D
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
261352 20/11
Zoro #
G914820463
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Size
20/11
Usable Depth
9,5 mm
Min. Pre-Drill Diameter Dmin
25 mm
Clamping Height
19 mm
Max. Bore Dia.
3 x D
Insert Size
11 mm
Head Length
50 mm
Overall Length
180 mm
Shank Dia.
20 mm
Neck Width
13.9 mm
Details
Item
Boring bar
Insert Shape
35 Degrees Diamond
Shank Type
Boring bar
Center Offset
14 mm
Application
Internal longitudinal turning
Cutting Direction
Right-Hand
ISO Number
A20Q SVVCR/L11
Setting Angle
72.5 Angle
Coolant Through
Yes
Insert Assignment
left-hand and neutral
Description
Boring bar steel 20/11 mmStandard: Works standard Shank Diameters: 20 mm ISO code toolholder: A20Q SVVCR/L11 Setting angle k: 72.5 degrees suitable indexable insert: VC 1103 Minimum pre-drill Diametermin: 25 mm Center offset L3: 14 mm
