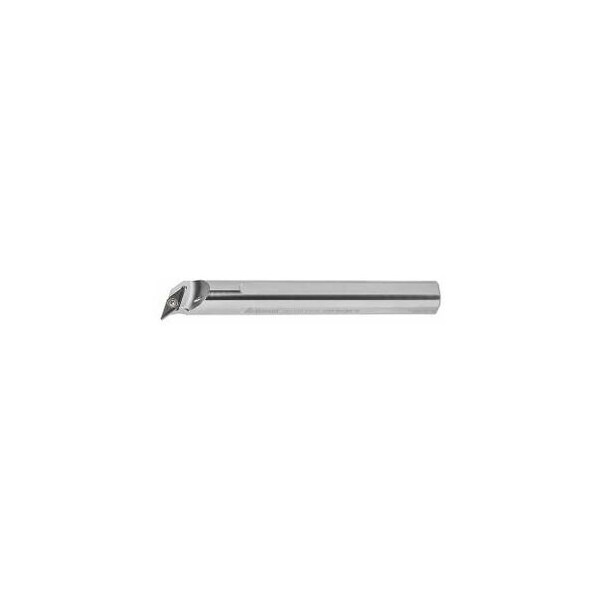

Steel Boring Bar, A25R SVQBR16, for VB 3 Inserts, Right-Hand
Mfr # 261130 25/16
Zoro # G214820286
product price:Â $263.99
/ea
Free Shipping & Returns
Key Features
Overall Length
200 mm
Insert Shape
35 Degrees Diamond
Size
25/16
Insert Assignment
left-hand and neutral
Coolant Through
Yes
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 261130 25/16
- Zoro #
- G214820286
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 200 mm
- Size
- 25/16
- Insert Size
- 16 mm
- Max. Bore Dia.
- 3 x D
- Min. Pre-Drill Diameter Dmin
- 32 mm
- Free Length
- 100 mm
- Shank Dia.
- 25 mm
- Clamping Height
- 23 mm
- Head Length
- 40 mm
Details
- Item
- Boring bar
- Insert Shape
- 35 Degrees Diamond
- Insert Assignment
- left-hand and neutral
- Coolant Through
- Yes
- Setting Angle
- 107.5 Angle
- Center Offset
- 17 mm
- ISO Number
- A25R SVQBR/L16
- Shank Type
- Boring bar
- Standards
- DIN 8024
- Application
- Internal longitudinal turning
- Cutting Direction
- Right-Hand
Description
Boring bar steel 25/16 mmStandard: DIN 8024 Shank Diameters: 25 mm ISO code toolholder: A25R SVQBR/L16 Setting angle k: 107.5 degrees suitable indexable insert: VB 1604 Minimum pre-drill Diametermin: 32 mm Center offset L3: 17 mm
