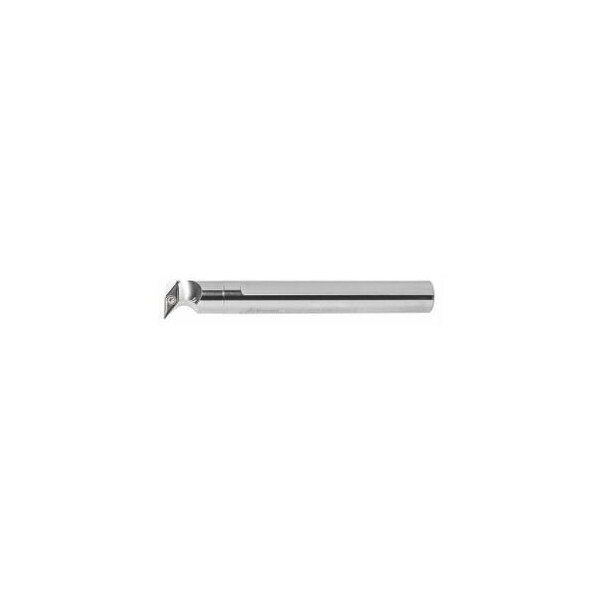

Steel Boring Bar, A32S SVUBR16, for VB 3 Inserts, Right-Hand
Mfr # 261132 32/16
Zoro # G814820303
product price:Â $327.99
/ea
Free Shipping & Returns
Key Features
Overall Length
250 mm
Insert Shape
35 Degrees Diamond
Size
32/16
ISO Number
A32S SVUBR/L16
Max. Bore Dia.
3 x D
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
261132 32/16
Zoro #
G814820303
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Overall Length
250 mm
Size
32/16
Max. Bore Dia.
3 x D
Shank Dia.
32 mm
Head Length
33.5 mm
Min. Pre-Drill Diameter Dmin
40 mm
Cutting Width
16 mm
Insert Size
16 mm
Free Length
130 mm
Clamping Height
31 mm
Details
Item
Boring bar
Insert Shape
35 Degrees Diamond
ISO Number
A32S SVUBR/L16
Coolant Through
Yes
Application
Internal longitudinal turning
Shim
269005 8
Standards
DIN 8024
Cutting Direction
Right-Hand
Center Offset
22 mm
Shank Type
Boring bar
Setting Angle
93 Angle
Shim screw
269013 2
Description
Boring bar, steel 32/16 mmStandard: DIN 8024 Shank Diameters: 32 mm ISO code toolholder: A32S SVUBR/L16 Setting angle k: 93 degrees suitable indexable insert: VB 1604 Minimum pre-drill Diametermin: 40 mm Center offset L3: 22 mm
