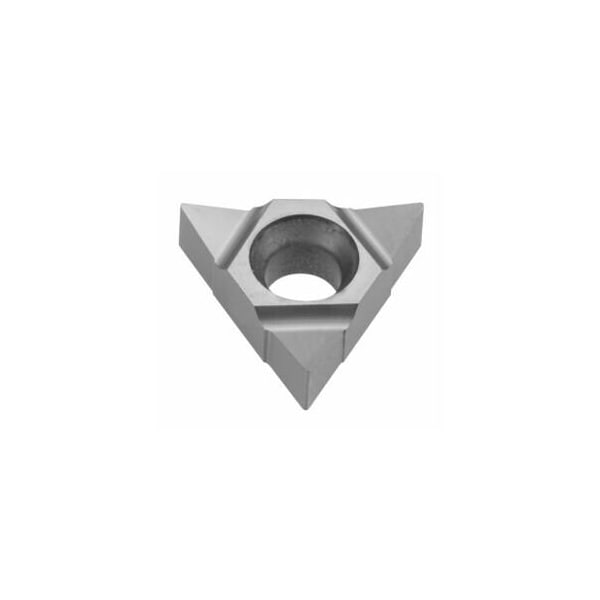

Thread Milling Insert for Internal Threads, 60 Degree, 2, 5-4, 0mm Pitch
Mfr # 218122 2,5-4,0
Zoro # G116121498
product price:Â
$
29.89
/ea
Key Features
Insert Size
11 mm
Grade
HB7720
Cutting Direction
Right Hand, left-hand
Coating
TiCN
Insert Material
Carbide
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 218122 2,5-4,0
- Zoro #
- G116121498
- UPC #
- -
- Country of Origin
- Israel
Dimensions
- Insert Size
- 11 mm
Details
- Item
- Cutter insert for milling
- Pitch
- 2.5-4.0 mm
- Grade
- HB7720
- Cutting Direction
- Right Hand, left-hand
- Coating
- TiCN
- Insert Material
- Carbide
- Max. Thread Pitch
- 4 mm
- For Threads
- M30x2.5; M30x3
- Thread Pitch
- 2.5 - 4 mm
- Number of Teeth
- 1
- Flank Angle
- 60°
- Full Profile
- No
- Thread profile
- Partial profile
Description
Version: Insert size 11. Application: For metric internal threads with 60 deg. flank to DIN / ISO R 262 DIN 13. Cutting direction: right-hand and left-hand Feed fz in INOX < 900 N/mm2: 0.03 mm
