Shop GARANT

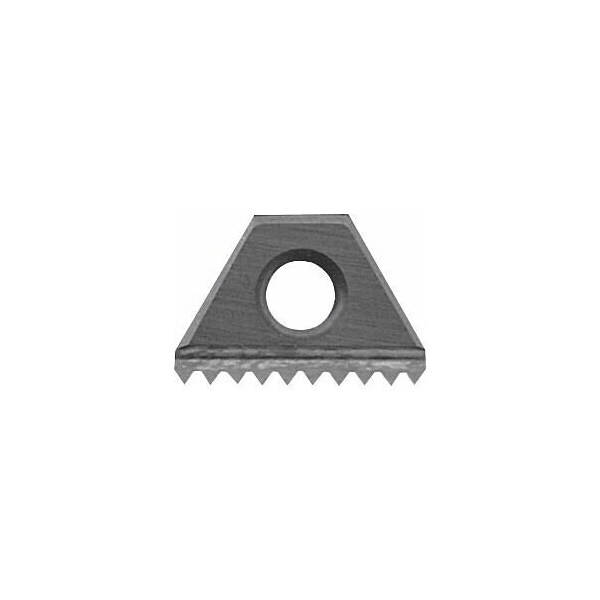

Thread Milling Insert for Internal/External Threads, 55 Degree, 19TPI

  • Mfr # 218020 19
  • Zoro # G216121466
product price:
$
82.95
/ea

Key Features

Insert Size
11 mm
Grade
HB7720
Cutting Direction
right-hand and left-hand
Insert Material
Carbide
Number of Teeth
7
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
218020 19
Zoro #
G216121466
UPC #
-
Country of Origin
Israel

Dimensions

Insert Size
11 mm

Details

Item
Cutter insert for milling
Grade
HB7720
Cutting Direction
right-hand and left-hand
Insert Material
Carbide
Number of Teeth
7
Thread Pitch
1.336 mm
Thread profile
Full profile
Flank Angle
55°
Correction Factor
2.5
Thread per Inch
19
Teeth per Inch
19
Full Profile
Yes

Description

Version: Sturdy inserts. Two usable edges. - Wide range of applications thanks to universal chip breaker geometry. - High repetition accuracy. Application: For internal and external threads 55 deg. to standard BS 84: 1956- DIN 259- ISO 228/1:1982. Tolerance medium- class A. Feed fz in INOX < 900 N/mm2: 0.05 mm
