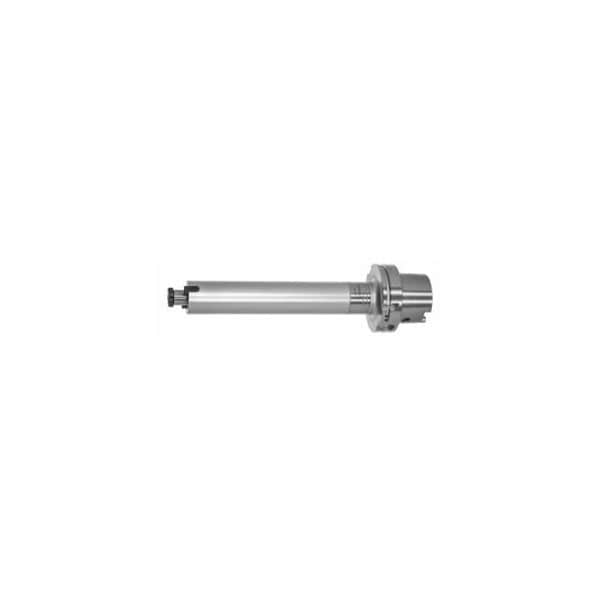

Vibration-Damped Face Mill Arbor, HSK-A 100, Projection: 300, Clamping Diameter: 32mm
Mfr # 306709 32
Zoro # G414773450
product price:Â $1,457.99
/ea
Free Shipping & Returns
Key Features
Standards
DIN 6357
Taper Size
HSK100A
Dia.
78 mm
Machining Strategy
HPC
Balance Quality
G 6.3 at 8,000 rpm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
306709 32
Zoro #
G414773450
UPC #
-
Country of Origin
Spain
Dimensions
Taper Size
HSK100A
Dia.
78 mm
Milling Mandrel Length
24 mm
Details
Standards
DIN 6357
Item
Milling head arbor
Machining Strategy
HPC
Balance Quality
G 6.3 at 8,000 rpm
Concentricity
≤ 6 µm
Projection
300 mm
Vibration
damped
Shank Shape
A
Description
Taper shank, spigot, and all contact surfaces are ground at the collar. With Balluff/RFID chip bore. Increased collar contact surface. Vibration-Damped version, Arbor with vibration-damping core. Advantage: Significantly lower tendency to vibrate! Considerable increase in feed rate! Supplied with: Cutter lock screw and drive dog. Optional extras: Special coolant pipe wrench No. 309840, coolant pipe No. 309880. Note: Further sizes on request. Overhang dimension A: 300 mm Dia D2: 78 mm Milling mandrel length L4: 24 mm
