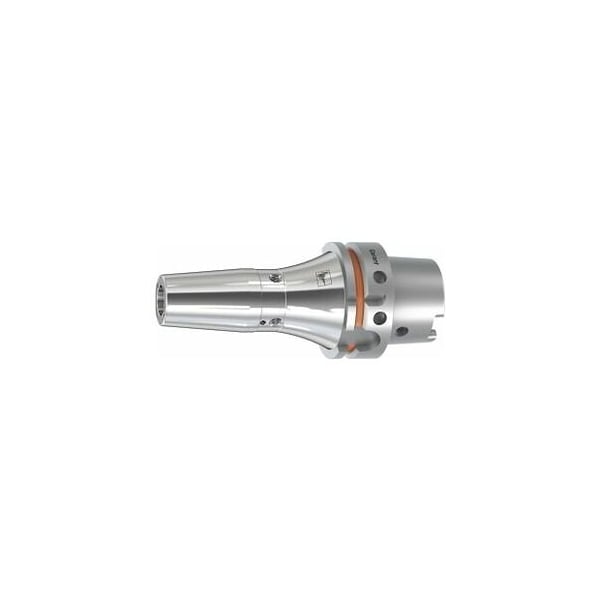

Vibration-Damped Shrink-fit Holder, HSK-A 63, Projection: 120, Clamping Range: 16mm

  • Mfr # 308342 16

  • Zoro # G414774891

product price:
$
417.99
/ea
Free Shipping & Returns

Key Features

Taper Size
HSK63A
Projection
120 mm
Coolant Fed
Yes
External Dia.
34 mm
Balance Quality
G 2.5 at 25,000 rpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
308342 16
Zoro #
G414774891
UPC #
-
Country of Origin
Italy

Dimensions

Taper Size
HSK63A
External Dia.
34 mm
Dia.
53 mm
Clamping Dia.
16 mm

Details

Item
Shrink-fit chuck
Projection
120 mm
Coolant Fed
Yes
Balance Quality
G 2.5 at 25,000 rpm
Cooling Channel Bore
lockable
Shape
A
Vibration
damped
Concentricity
≤ 3 µm

Description

High-temperature steel. Integrated length adjustment of the tools. For HSS and solid carbide tools. Shanks hard turned smooth cutting action!. With RFID/Balluffchip bore. With coolant channel bores and threads that can be sealed. With tapped holes on each side for balancing screws. Reinforced version/contour. Polished surface. Specially mounted carbide core in the Shrink-fit holder body. Advantage: Vibration-damping. Better workpiece surface finish. optimized tool life. Increased process reliability. Lower corrosion tendency due to polished surface. Application: For clamping tools with plain shank h6 shank tolerance. Suitable for inductive, contact and hot air shrink-fitting units. Optional extras: HSK coolant tube No. 309880, Socket wrench No. 309890, Shrink-fit unit, accessories No. 354210 - 354440, Balancing screws set No. 309906 size 180. Cooling channel bore: lockable Clamping Dia D1: 16 mm Overhang dimension A: 120 mm External Dia D: 34 mm Dia D2: 27 mm Dia D3: 53 mm L2: 65 mm
