Shop GARANT

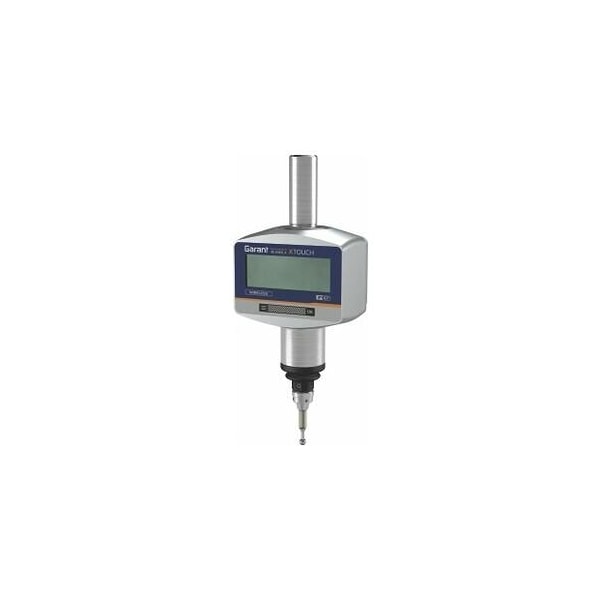

XTOUCH 3D Edge Finder, Digital, with Contact Point Diameter 4 mm

  • Mfr # 359450 4
  • Zoro # G515324834

product price:
$
2,250.99
/ea
Free Shipping & Returns

Key Features

Shank Dia. (In.)
0.6299
Scale Divisions
0.005 mm
Displacement Travel
7 mm
Width
67 mm
IP Index Of Protection
IP 67
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
359450 4
Zoro #
G515324834
UPC #
-
Country of Origin
Germany
Item
Probes
Scale Divisions
0.005 mm
Displacement Travel
7 mm
IP Index Of Protection
IP 67
Spare Contact Point
359505 4
Power Supply
Battery-powered
Number of Batteries Contained
1
Series
XTOUCH
Battery
Button cell
Adjustment Travel
±0.4 mm
Measuring Accuracy
< 0.01 mm

Dimensions

Shank Dia. (In.)
0.6299
Width
67 mm
Free Length Contact Point
40 mm
Depth
39 mm

Description

Possibility to transfer the measured values in combination with GARANT Xconnect No. 359455 1. Suitable only for Siemens and Heidenhain controllers. The machine requires a functioning USB port on the control panel. High accuracy and linearity. For fully automatic determination of component zero-points, measurement of lengths, bore Centers, reference edges and axial alignment. Convenient and simple concentricity adjustment. Large working range in all directions x, y, z = 7 mm. Compact metal body. Dust-tight and watertight = IP67. Predetermined breaking point. Simple menu navigation. Quick commissioning without hardware changeover and service engineer use. No need to interfere with the machine tool operating system! Minimisation of rejects. Function: IP67: Protected against intermittent immersion in water and protected against penetration by dust dust-tight, also completely protected against touching. Application: Automatic transmission of the measured values into the machine control by GARANT Xconnect No. 359455 1. For fully automatic determination of component zero-points, measurement of lengths, bore Centers, reference edges and axial alignment. Manual operation without wireless transmission without XCONNECT is also possible. Supplied with: Supplied with battery CR2 and contact point No. 359505 size 4. Optional extras: XCONNECT data memory stick No. 359455 1. Note: Suitable contact point No. 359505 4. The item is permanently installed on a machine and can only be used on another machine through another cycle request. IP Index of Protection: IP 67 Shank Dia: 16 mm Scale divisions: 0.005 mm Measuring accuracy: < 0.01 mm Displacement travel x, y, z respectively: 7 mm Body length: 82 mm Body depth: 39 mm
