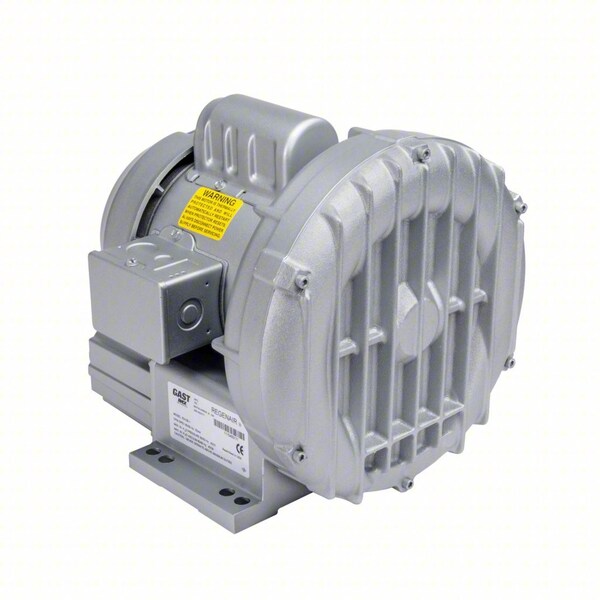

12/Skid R3105-1 Regenerative Blower

  • Mfr # R3105NX

  • Zoro # G0602257


product price: $1,167.99
/ea
Free Shipping & Returns

Key Features

Voltage
110/220 to 240V AC, 115/208 to 230V AC
Inlet Size
1 1/4 in
Outlet Size
1 1/4 in
Standards
CE, cURus, UKCA
Overall Length
11.06 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R3105NX
Zoro #
G0602257
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1 1/4 in
Outlet Size
1 1/4 in
Overall Length
11.06 in
Overall Depth
11.06 in
Overall Height
10.09 in
Overall Width
9.7 in

Details

Item
Regenerative Blower
Voltage
110/220 to 240V AC, 115/208 to 230V AC
Standards
CE, cURus, UKCA
Phase
Single
Housing Material
Aluminum
Maximum Speed
450 RPM
Weight
29 lb
Outlet Type
NPT
Maximum Flow Rate
54 cfm
Maximum Ambient Temperature
104 Degrees F
Noise Level
68 dBA
Maximum Flow Rate @ 50Hz
44 cfm
Output Power
0.5 hp
Wattage
0.37 kW
Inlet Type
NPT
Maximum Operating Pressure
43 in wc
Sound Level
68 dBA
Frequency
50 Hz, 60 Hz
Output Power @ 50 Hz
0.1 hp
Maximum Vacuum
40 in wc
Voltage @ 50 Hz
110/220 to 240V AC
Outlet Gender
Female
Inlet Gender
Female
Enclosure Rating
NEMA 48
Series
Gast
Current Rating
6.0/3.2-3.0 A
Current Rating @ 50 Hz
5 A; 3 A
Maximum Air Temperature Rise
70 Degrees F
Enclosure Type
Totally Enclosed Fan-Cooled

Description

Regenerative Blower, Phase Single, Output Power 0.5 hp, Maximum Operating Pressure 43 in wc, Maximum Flow Rate 54 cfm, Maximum Vacuum 40 in wc, Voltage 110/220 to 240V AC, 115/208 to 230V AC, Inlet Size 1 1/4 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 1 1/4 in, Outlet Type NPT, Outlet Gender Female, Current Rating 6.0/3.2-3.0 A, Frequency 50 Hz, 60 Hz, Housing Material Aluminum
