Gast 1423-101Q-G625 Rotary Vane Pump 1423-101Q-G625 - main

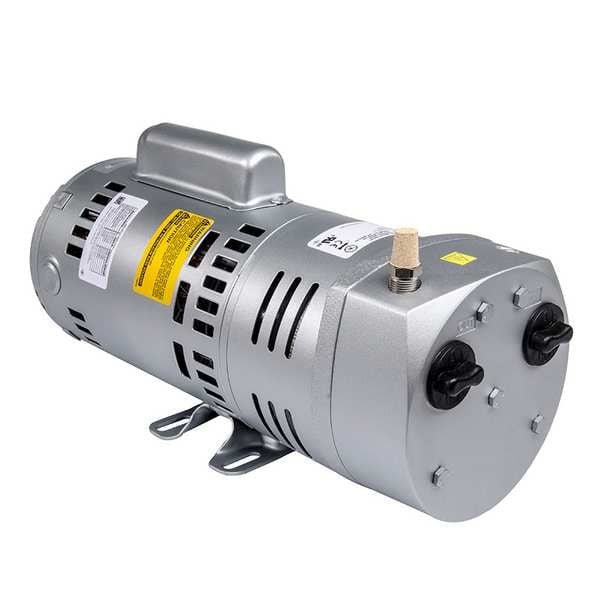

1423-101Q-G625 Rotary Vane Pump

  • Mfr # 1423-101Q-G625

  • Zoro # G0665071

product price: $1,230.99
/ea
Free Shipping & Returns

Key Features

Voltage
208 to 230/460V AC, 220 to 240/380 to 415V
Inlet Size
3/8 in
Outlet Size
3/8 in
Standards
CE, UKCA
Overall Height
8.78 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1423-101Q-G625
Zoro #
G0665071
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
3/8 in
Outlet Size
3/8 in
Overall Height
8.78 in
Overall Length
16.95 in
Overall Width
6.5 in

Details

Item
Vacuum Pump
Voltage
208 to 230/460V AC, 220 to 240/380 to 415V
Standards
CE, UKCA
Phase
Three
Includes
External Inlet Filter, Internal Muffler and Filter, Thermal Protector
Maximum Pressure
10 psi
Maximum Speed @ 50 Hz
1,425 RPM
Maximum Pressure @ 50 Hz
10 psi
Free Air Flow Rate
11.5 cfm, 13 cfm
Weight
54.5 lb
Maximum Speed
1,725 RPM
Maximum Vacuum
26 in Hg
Maximum Continuous Pressure
10 psi
Outlet Type
NPT
Output Power
1 hp
Wattage
0.75 kW
Maximum Operating Temperature
104 Degrees F
Minimum Operating Temperature
33.8 Degrees F
Sound Level
79 dBA
Inlet Type
NPT
Inlet Gender
Female
Current Rating
4.1 A
Outlet Gender
Female
Insulation Class
B
Frequency
50 Hz, 60 Hz
Lubrication Type
No Oil
Thermal Protection
No
Environment
Laboratory, Medical
Series
Gast
Pump Type
Rotary Vane
Power Source
Corded Electric
Duty Cycle
Continuous
Compressor/Pump Enclosure Material
Grey Iron
Maximum Intermittent Pressure
10 psi
Life Expectancy
4,000 hr
Filter Element Material
Polypropylene
Housing Material
Grey Iron

Description

Vacuum Pump, Output Power 1 hp, Phase Three, Voltage 208 to 230/460V AC, 220 to 240/380 to 415V, Inlet Size 3/8 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 3/8 in, Outlet Type NPT, Outlet Gender Female, Free Air Flow Rate 11.5 cfm, 13 cfm, Maximum Vacuum 26 in Hg, Maximum Continuous Pressure 10 psi, Maximum Speed 1,725 RPM
