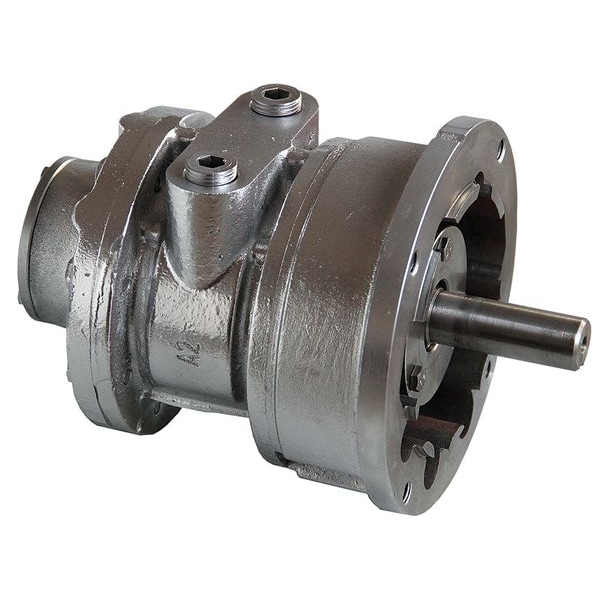

Air Motor, 5.25 HP, 175 cfm, 2500 rpm

Mfr # 22UX51
Zoro # G6194596

$331.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Running Torque @ Max. Pressure 132 in-lb
HP 5.25 hp
Max. Air Flow 175 cfm
No Load RPM 2,500 RPM
Shaft Dia. 7/8 in

See all product information

Brand Speedaire
MFR # 22UX51
Zoro # G6194596
UPC #
190735606353
Country of Origin China
Category Air Motors

Dimensions

Shaft Dia.	7/8 in
Port Size	1/2 in NPT
Overall Length	9 1/2 in
Overall Width	6 1/2 in
Keyway Length	1 3/8 in
Overall Height	6 1/2 in
Shaft Length	2 1/8 in
Outside Diameter	5 1/2 in
Shaft Diameter	7/8 in
Inlet Size	1/2 in
Manufacturers Warranty Length	1 yr
Keyway Depth	1/8 in
Keyway Width	1/4 in

Details

Item	Air Motor
Running Torque @ Max. Pressure	132 in-lb
HP	5.25 hp
Max. Air Flow	175 cfm
No Load RPM	2,500 RPM
Mounting	Flange
Rotation	CW/CCW
Operating Temp. Range	0 Degrees to 250 Degrees F
Includes	Muffler
RPM @ Max. Torque	300 RPM
Max. Air Pressure	100 psi
Housing Material	Cast Iron
Finish	Gray
Mount Type	Flange
Weight	27.56 lb
Maximum Operating Pressure	100 psi
Output Power @ Maximum Speed	5.25 hp
System of Measurement	Inch
No Load Speed	2,500 RPM
Nameplate Speed	300 RPM
Maximum Torque	132 in-lb
Speed @ Maximum Torque	300 RPM
Maximum Ambient Temperature	250 Degrees F
Mounting Orientation	Any Angle
Maximum Flow Rate	175 cfm
Minimum Operating Pressure	1.4 bar
Housing Material Finish	Painted
Motor Frame Material	Cast Iron
Keyway Type	Flat Key
Minimum Flow Rate	25.32 cfm
Shaft Material	Steel
Shaft Material Grade	40Cr
Air Inlet Center to Center Distance	2 3/4 in
Air Inlet Type	NPT
Shaft Orientation	Inline
Air Consumption	175 cfm
Inlet Gender	Female
Minimum Ambient Temperature	0 Degrees F
Number of Vanes	4

Description

Air Motor, Output Power @ Maximum Speed 5.25 hp, Maximum Torque 132 in-lb, No Load Speed 2,500 RPM, Maximum Flow Rate 175 cfm, Shaft Diameter 7/8 in, Shaft Length 2 1/8 in, Mount Type Flange, Inlet Size 1/2 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 40Cr, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/4 in, Weight 27.56 lb, Housing Material Grade Not Applicable, Housing Material Finish Painted
