  11. 2567-V1 Rotary Vane Pump Sep Drive

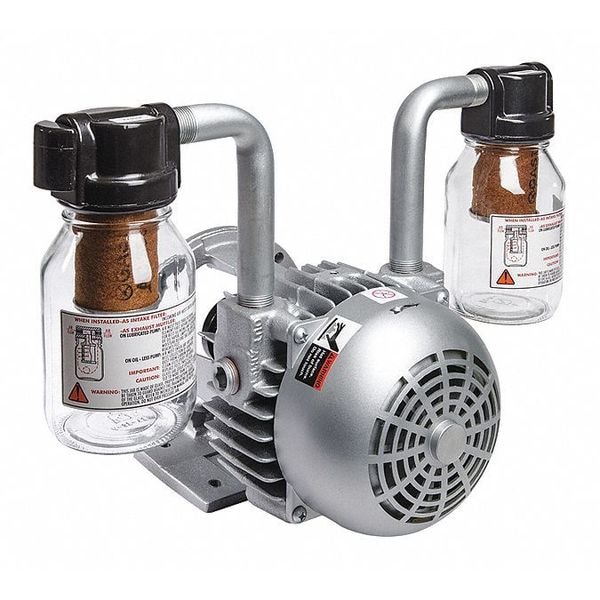

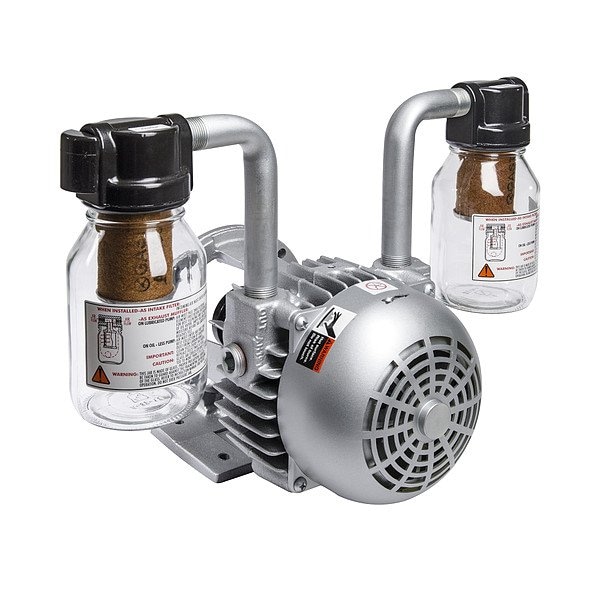

Gast 2567-V1 Rotary Vane Pump Sep Drive 2567-V1 - main

2567-V1 Rotary Vane Pump Sep Drive

  • Mfr # 2567-V1

  • Zoro # G0665126

product price: $1,883.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
3/4 in
Outlet Size
3/4 in
Standards
CE
Overall Length
19.84 in
Overall Width
11.48 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2567-V1
Zoro #
G0665126
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
3/4 in
Outlet Size
3/4 in
Overall Length
19.84 in
Overall Width
11.48 in
Overall Height
15.29 in

Details

Item
Vacuum Pump
Standards
CE
Includes
Oil Reservoir, Pressure Gauge, Pressure/Vacuum Lubricator
Wattage
1.1 kW
Maximum Operating Temperature
104 Degrees F
Sound Level
78 dBA
Free Air Flow Rate
17 cfm, 21 cfm
Output Power
1.5 hp
Outlet Type
NPT
Minimum Operating Temperature
33.8 Degrees F
Maximum Speed
1,725 RPM
Weight
55 lb
Maximum Vacuum
28 in Hg
Maximum Speed @ 50 Hz
1,425 RPM
Inlet Type
NPT
Pump Type
Rotary Vane
Outlet Gender
Female
Duty Cycle
Continuous
Environment
Laboratory, Medical
Inlet Gender
Female
Thermal Protection
No
Frequency
50 Hz, 60 Hz
Power Source
Separate Drive
Series
Gast
Life Expectancy
4,000 hr
Bearing Type
Shielded Ball
Maximum Intermittent Pressure
15 psi
Compressor/Pump Enclosure Material
Grey Iron
Filter Element Material
Polypropylene
Housing Material
Grey Iron
Pump Oil Capacity
6 fl oz
Lubrication Type
SAE#10
Maximum Pressure @ 50 Hz
15 psi

Description

Vacuum Pump, Output Power 1.5 hp, Phase Not Applicable, Voltage Not Applicable, Inlet Size 3/4 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 3/4 in, Outlet Type NPT, Outlet Gender Female, Free Air Flow Rate 17 cfm, 21 cfm, Maximum Vacuum 28 in Hg, Maximum Continuous Pressure Not Applicable, Maximum Speed 1,725 RPM
