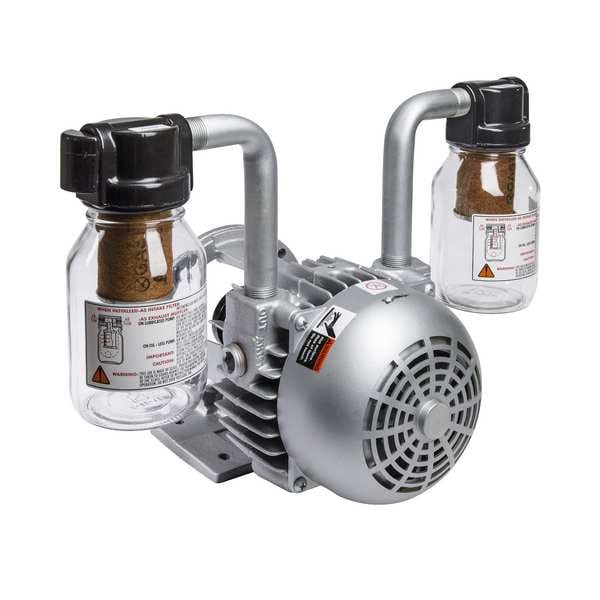

Gast 6/Skid Rotary Vane Pump - Sep Drive 2567-V103 - main

6/Skid Rotary Vane Pump - Sep Drive

  • Mfr # 2567-V103

  • Zoro # G0665150

product price:  $1,264.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
3/4 in
Outlet Size
3/4 in
Overall Width
11.48 in
Overall Height
13.23 in
Includes
Oil Reservoir, Pressure Gauge, Pressure/Vacuum Lubricator
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2567-V103
Zoro #
G0665150
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
3/4 in
Outlet Size
3/4 in
Overall Width
11.48 in
Overall Height
13.23 in
Overall Length
18 in

Details

Item
Vacuum Pump
Includes
Oil Reservoir, Pressure Gauge, Pressure/Vacuum Lubricator
Maximum Vacuum
21 in Hg
Outlet Type
NPT
Maximum Continuous Pressure
15 psi
Maximum Speed
1,725 RPM
Maximum Speed @ 50 Hz
1,425 RPM
Sound Level
80 dBA
Free Air Flow Rate
17 cfm, 21 cfm
Weight
55 lb
Inlet Type
NPT
Output Power
1.5 hp
Maximum Pressure @ 50 Hz
15 psi
Wattage
1.1 kW
Maximum Pressure
15 psi
Minimum Operating Temperature
33.8 Degrees F
Maximum Operating Temperature
104 Degrees F
Duty Cycle
Continuous
Pump Type
Rotary Vane
Series
Gast
Outlet Gender
Female
Power Source
Separate Drive
Frequency
50 Hz, 60 Hz
Inlet Gender
Female
Thermal Protection
No
Environment
Laboratory, Medical
Bearing Type
Shielded Ball
Housing Material
Grey Iron
Life Expectancy
4,000 hr
Filter Element Material
Polypropylene
Compressor/Pump Enclosure Material
Grey Iron
Maximum Intermittent Pressure
15 psi
Lubrication Type
No Oil

Description

Vacuum Pump, Output Power 1.5 hp, Phase Not Applicable, Voltage Not Applicable, Inlet Size 3/4 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 3/4 in, Outlet Type NPT, Outlet Gender Female, Free Air Flow Rate 17 cfm, 21 cfm, Maximum Vacuum 21 in Hg, Maximum Continuous Pressure 15 psi, Maximum Speed 1,725 RPM
