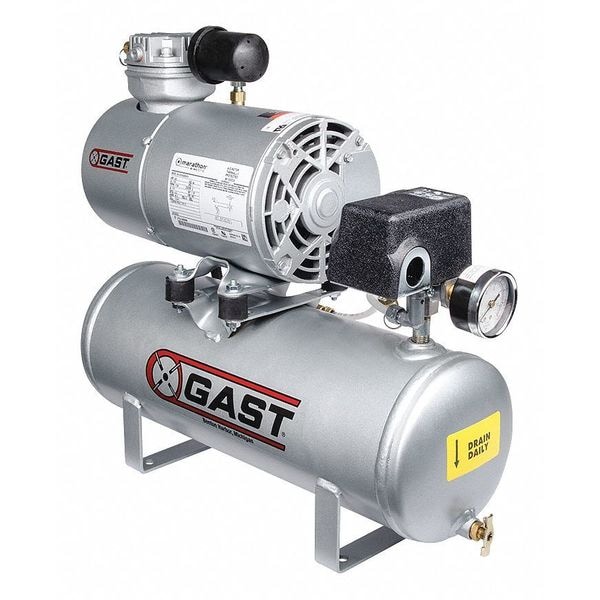

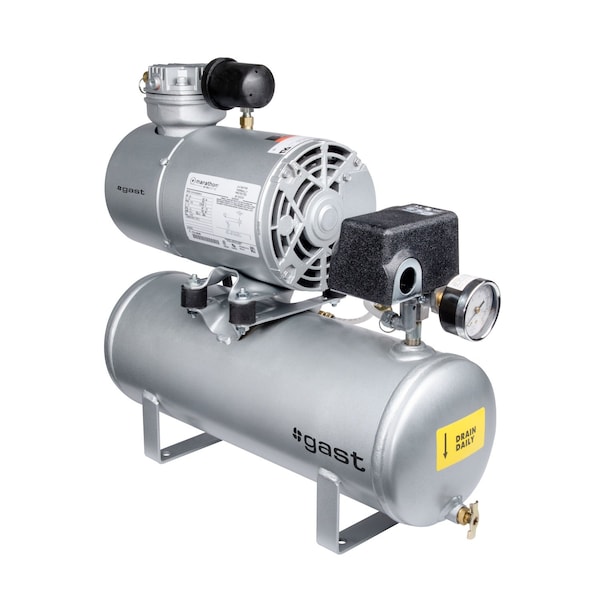

Gast 4/Skid 1Hab-11T-M100X Piston Pump Tank 1HAB-11T-M100X - main

4/Skid 1Hab-11T-M100X Piston Pump Tank

  • Mfr # 1HAB-11T-M100X

  • Zoro # G1175995

product price: $1,544.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oilless
Number of Cylinders
1
HP
1/6
Phase
Single
Voltage
115V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1HAB-11T-M100X
Zoro #
G1175995
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
17.53 in
Overall Height
16.66 in
Overall Width
8.3 in
Tank Size
2 gal.
Air Tank Size
2 gal
Mounting Hole Diameter
7/20 in
Stroke Length
1/2 in
Cord Length
1.17 ft

Details

Item
Piston Air Compressor
Lubrication Type
Oilless
Number of Cylinders
1
HP
1/6
Phase
Single
Voltage
115V AC
Max. Pressure
100 psi
Weight
49 lb.
Includes
Pressure Switch; ASME Coded Receiver Tank With Manual Drain; Pressure Safety Valve (ASME); Pressure Gauge; Shut Off Valve and Check Valve
Free Air CFM @ Max. Pressure
1.3
Standards
NFPA 13
Cylinder Material
Aluminum
Finish
Painted
Maximum Continuous Pressure
100 psi
Minimum Operating Temperature
32 Degrees F
Free Air Flow Rate
1.3 cfm
Air Tank Style
Horizontal
Output Power
0.12 hp
Maximum Operating Temperature
104 Degrees F
Pump Type
Piston
Inlet Type
NPT
Maximum Speed
1,725 RPM
Piston Type
Reciprocating
Maximum Intermittent Pressure
100 psi
Outlet Type
NPT
ASME Tank
No
Control Type
Pressure Switch
Duty Cycle
Continuous
Thermal Protection
Yes
Power Source
Corded Electric
Frequency
60 Hz
Series
Gast
Engine Enclosure Material
Steel
Outlet Gender
Female
Enclosure Type
Clean Dust Free
Valve Material
Stainless Steel
Inlet Gender
Female
Exhaust Location
Side
Enclosure Rating
IP20
Compressor/Pump Enclosure Material
Aluminum/Plastic
Motor Design
Split-Phase Induction
Life Expectancy
16,000 hr
Valve Type
Reed
Electrical Connection
Screw Terminal
Sound Level
70 dBA
Current Rating
3.8 A
Mounting Style
Foot Mount

Description

Piston Air Compressor, Lubrication Type Oilless, Number of Cylinders 1, Output Power 0.12 hp, Phase Single, Voltage 115V AC, Maximum Continuous Pressure 100 psi, Maximum Intermittent Pressure 100 psi, Maximum Vacuum Not Applicable, Free Air Flow Rate 1.3 cfm, Maximum Speed 1,725 RPM, Inlet Size 1/4 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 1/4 in, Outlet Type NPT, Outlet Gender Female
