Piston Air Compressor/Vacuum Pump, 1/3HP
- Mfr # 2688VE44
- Zoro # G0790115
product price:
$
606.99
/ea
Free Shipping & Returns
Key Features
Lubrication Type
Oil Free
Number of Cylinders
2
HP
1/3 hp
Phase
Single
Voltage
115V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2688VE44
- Zoro #
- G0790115
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Inlet Size
- 1/4 in
- Outlet Size
- 1/4 in
- Overall Length
- 9.625 in
- Overall Height
- 7.1 in
- Overall Width
- 6.75 in
- Cord Length
- 6 ft
- Stroke Length
- 7/16 in
- Wire Rope Length
- 9.625 in
- Length
- 9.625 in
Description

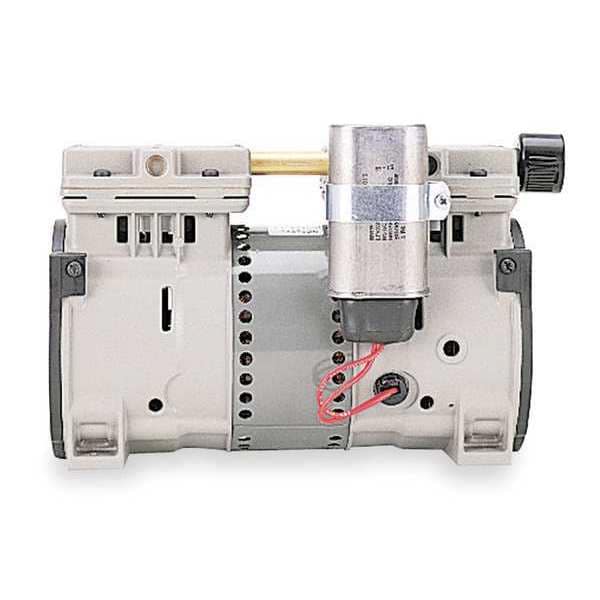

The Thomas 2688VE44 is an oil-free, twin-cylinder piston air compressor and vacuum pump with a WOB-L (wobble) piston design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/3 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery of 1.6 CFM at 0 psi, and a maximum vacuum of 29 in Hg. It is rated at a maximum speed of 1,750 RPM, a full-load current of 3.2 A, and a measured sound level of 63 dBA (@ 60 psi). The operating temperature range is 50-104°F. Construction includes an aluminum cylinder, a shaded-pole motor (thermally protected, with a high-torque start winding), and corrosion-resistant sandwich valves in stainless steel. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.625 x 6.75 x 7.1 in (L x W x H). It includes a 6 ft power cord. Country of origin: United States.
