Shop GAST

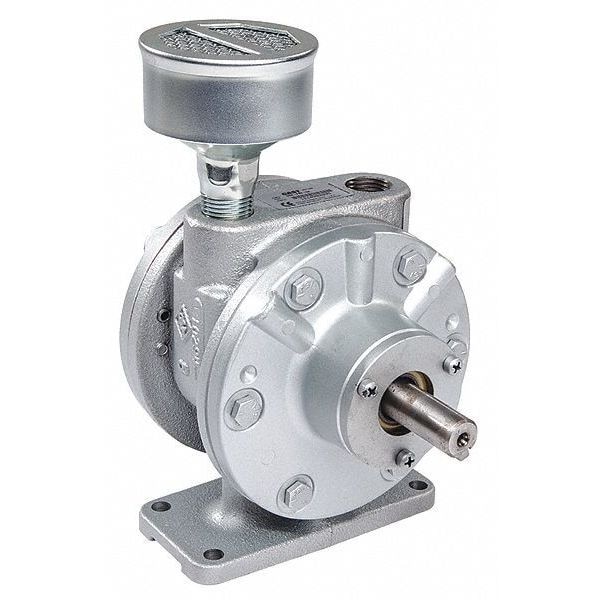

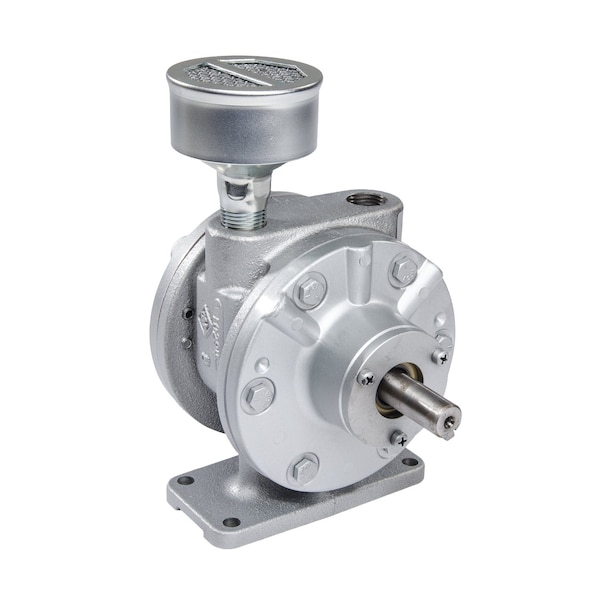

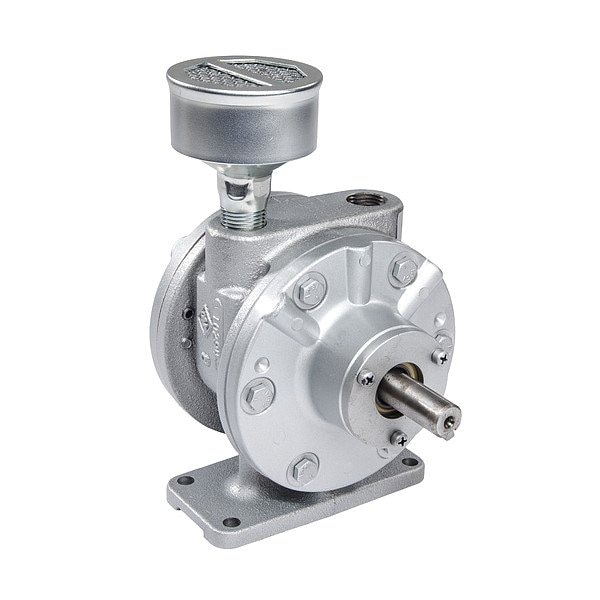

Air Motor, 4 hp, 84 in-lb Torque, 3,000 RPM, 130 cfm, 1/2" NPT

  • Mfr # 6AM-FRV-23A

  • Zoro # G0602467

product price:
$
683.99
/ea
Free Shipping & Returns

Key Features

Motor Design
AIR
Rotation
CW/CCW
Overall Length
7 1/2 in
Standards
ATEX
Length Less Shaft
6 11/100 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
6AM-FRV-23A
Zoro #
G0602467
UPC #
-
Country of Origin
United States
Item
Air Motor
Motor Design
AIR
Rotation
CW/CCW
Standards
ATEX
Includes
Muffler
Mount Type
Foot
Minimum Flow Rate
11 cfm
Starting Torque
62 in-lb
Shaft Material Grade
C1137OR C1141
Keyway Type
Square
Output Power @ Maximum Speed
4 hp
Output Power @ 25% Maximum Speed
1.5 hp
Housing Material Grade
G2500
No Load Speed
3,000 RPM
Minimum Ambient Temperature
34 Degrees F
Mounting Orientation
Any Angle
Series
6AM
Air Consumption
130 cfm
Weight
21 lb
Nameplate Speed
3,000 RPM
Minimum Operating Pressure
20 psi
Air Inlet Center to Center Distance
2 3/4 in
Maximum Ambient Temperature
248 Degrees F
Shaft Material
Steel
Output Power @ 50% Maximum Speed
2.5 hp
Maximum Flow Rate
130 cfm
System of Measurement
Inch
Housing Material Finish
Painted
Air Inlet Type
NPT
Motor Frame Material
Cast Iron
Maximum Torque
84 in-lb
Inlet Gender
Female
Maximum Operating Pressure
100 psi
Housing Material
Cast Iron
Shaft Orientation
Inline
Max. Air Pressure
101.53 psi
Number of Vanes
8
Output Shaft Type
Keyed

Description

Air Motor, Output Power @ Maximum Speed 4 hp, Maximum Torque 84 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 130 cfm, Shaft Diameter 5/8 in, Shaft Length 1 3/8 in, Mount Type Foot, Inlet Size 1/2 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade C1137OR C1141, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 21 lb, Housing Material Grade G2500, Housing Material Finish Painted
