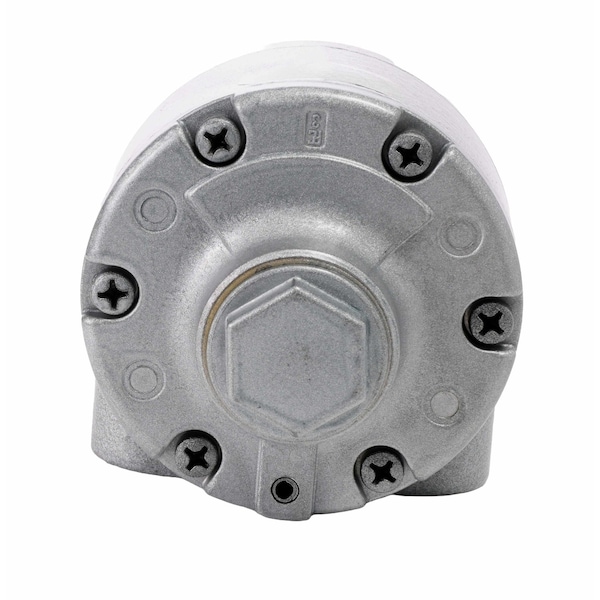

Gast Standard 4Am-Nrv-143 Air Motor
Mfr # 4AM-NRV-143
Zoro # G3266256
product price:Â $419.99
/ea
Free Shipping & Returns
Key Features
Motor Design
AIR
Rotation
CW/CCW
Overall Length
5 3/4 in
Shaft Length
1 1/8 in
Standards
ATEX
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 4AM-NRV-143
- Zoro #
- G3266256
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Length
- 5 3/4 in
- Shaft Length
- 1 1/8 in
- Length Less Shaft
- 4 7/10 in
- Overall Height
- 4 in
- Overall Width
- 4 in
- Outside Diameter
- 4 in
- Mount Hole Center-to-Center Length
- 2 3/8 in
- Manufacturers Warranty Length
- 1 yr
- Inlet Size
- 1/4 in
- Keyway Depth
- 1/4 in
- Shaft Diameter
- 1/2 in
- Keyway Length
- 1/2 in
- Keyway Width
- 1/8 in
- Mount Hole Center-to-Center Width
- 2 3/8 in
Description
Air Motor, Output Power @ Maximum Speed 1.7 hp, Maximum Torque 35 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 72 cfm, Shaft Diameter 1/2 in, Shaft Length 1 1/8 in, Mount Type Face, Hub, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 197-223 BHN, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Not Applicable, Keyway Width 1/8 in, Weight 7 lb, Housing Material Grade G2500
