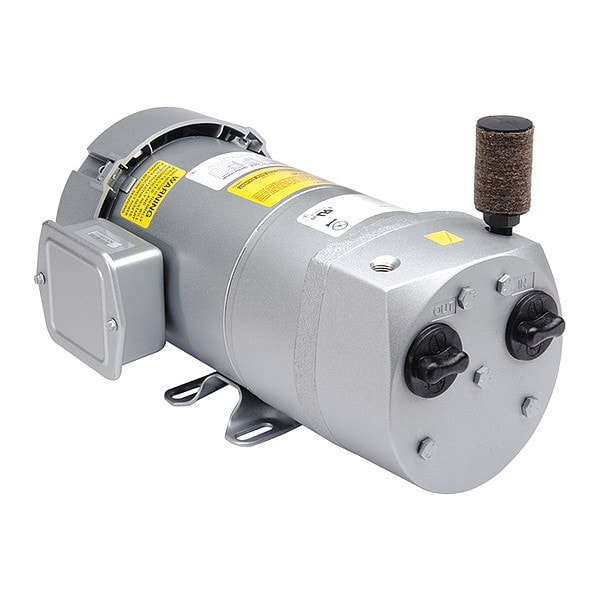

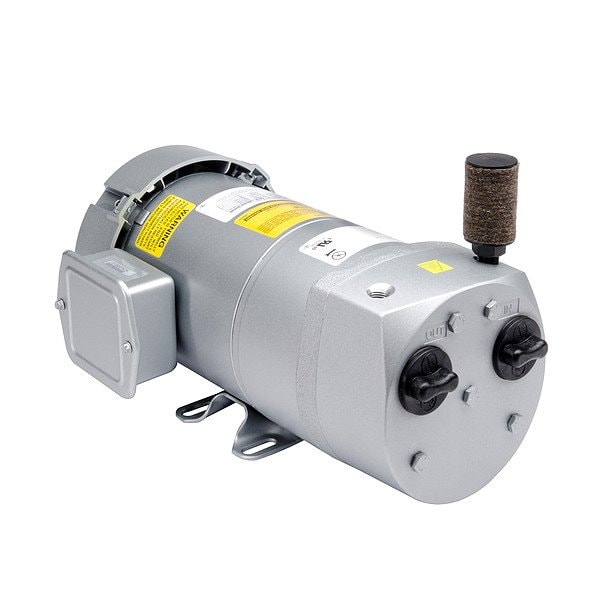

Gast At05-101-G215Dx Rotary Vane Pump AT05-101-G215DX - main

At05-101-G215Dx Rotary Vane Pump

  • Mfr # AT05-101-G215DX

  • Zoro # G1176108

product price: $1,024.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Overall Length
13.58 in
Standards
cURus
Outlet Size
1/4 in
Thermal Protection
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AT05-101-G215DX
Zoro #
G1176108
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
13.58 in
Outlet Size
1/4 in
Inlet Size
1/4 in
Overall Height
13.58 in
Overall Width
5.56 in

Details

Item
Vacuum Pump
Voltage
115V AC
Standards
cURus
Thermal Protection
Yes
Includes
External Muffler and Filter, Internal Muffler and Filter, Silencer, Thermal Protector
Phase
Single
Lubrication Type
No Oil
Maximum Operating Temperature
104 Degrees F
Maximum Speed
1,725 RPM
Output Power
0.25 hp
Sound Level
60 dBA
Maximum Continuous Pressure
5 psi
Inlet Type
NPT
Wattage
0.19 kW
Maximum Vacuum
24 in Hg
Outlet Type
NPT
Free Air Flow Rate
4.8 cfm
Minimum Operating Temperature
33.8 Degrees F
Maximum Pressure
5 psi
Weight
31 lb
Current Rating
4.7 A
Series
Gast
Inlet Gender
Female
Insulation Class
B
Environment
Laboratory, Medical
Power Source
Corded Electric
Outlet Gender
Female
Frequency
50 Hz
Duty Cycle
Continuous
Pump Type
Rotary Vane
Housing Material
Grey Iron
Maximum Intermittent Pressure
5 psi
Compressor/Pump Enclosure Material
Grey Iron
Filter Element Material
Polypropylene
Life Expectancy
4,000 hr
Duty Cycle (%)
1

Description

Vacuum Pump, Output Power 0.25 hp, Phase Single, Voltage 115V AC, Inlet Size 1/4 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 1/4 in, Outlet Type NPT, Outlet Gender Female, Free Air Flow Rate 4.8 cfm, Maximum Vacuum 24 in Hg, Maximum Continuous Pressure 5 psi, Maximum Speed 1,725 RPM
