Shop GAST

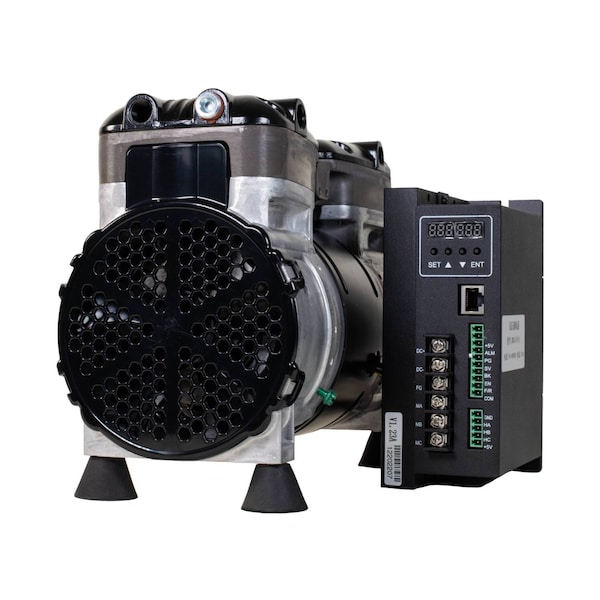

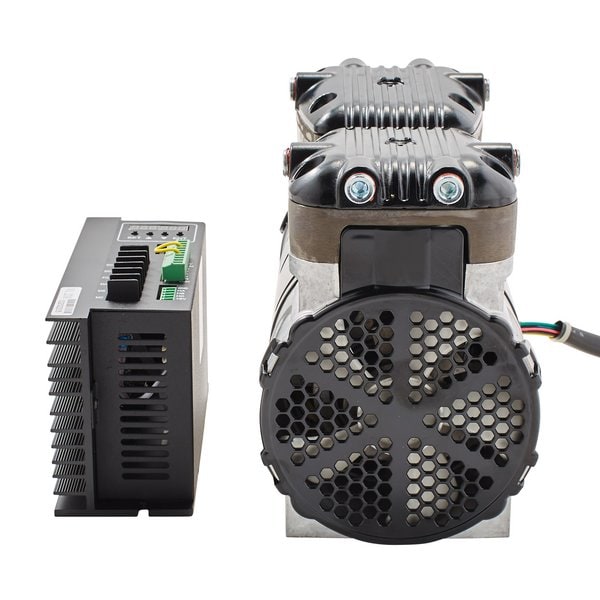

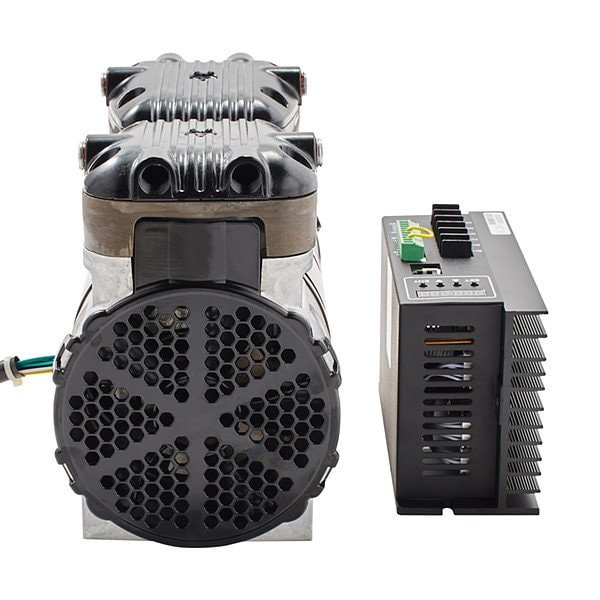

Electric Air Compressor, 1/2 hp Output

  • Mfr # 87R637-101-BL480X

  • Zoro # G310908659

product price:
$
2,334.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Phase
Three
Voltage
19-27 Vdc
Inlet Size
1/4 in
Outlet Size
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
87R637-101-BL480X
Zoro #
G310908659
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
9.54 in
Overall Height
7.08 in
Overall Width
5 in
Wire Rope Length
9.54 in
Length
9.54 in

Details

Item
Laboratory Air Compressor
Lubrication Type
Oil Free
Phase
Three
Voltage
19-27 Vdc
Outlet Type
NPT
Sound Level
65 dBA
Enclosure Type
Open Dripproof
Duty Cycle
Continuous
Maximum Speed
1,725 RPM
Input Voltage
24V DC
Enclosed
No
Maximum Operating Pressure
125 psi
Finish
Powder Coat
Air Dryer Included
No Air Dryer
Free Air Flow Rate @ Maximum Pressure
1.1 cfm
Power Source
Corded Electric
Life Expectancy
20,000 hr
Minimum Operating Temperature
41 Degrees F
Mounting Style
Rigid Base; Thru-Bolt
Plug Type
Two Prong
Inlet Type
NPT
Thermal Protection
Automatic Reset
Motor Type
Brushless DC
Electrical Connection
Wire Leads
Current Rating
22 A
Inlet Gender
Female
Output Power
1/2 hp
Outlet Gender
Female
Series
87R
Maximum Operating Temperature
104 Degrees F
Pump Type
Rocking Piston
Amps
20.27 A
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

The Gast 87R637-101-BL480X is an oil-free laboratory air compressor. It runs on 24V DC power at a rated 1/2 hp output. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.1 cfm at maximum pressure, and a maximum continuous pressure of 125 psi. It has a maximum speed of 1,725 RPM, a full-load current of 22 A, and a measured sound level of 65 dBA. The operating temperature range is 41 to 104°F. Construction includes a brushless DC motor. Enclosure type is open drip-proof. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.54 x 5 x 7.08 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 20,000 hr.
