Shop GAST

Piston Air Compressor, Rocking, 0.25 hp

  • Mfr # 86R130-VS101-N270X

  • Zoro # G611899076

product price:
$
791.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
No Lubrication
Phase
Single
Voltage
100/120V AC, 200/240V AC
Inlet Size
1/4 in
Outlet Size
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
86R130-VS101-N270X
Zoro #
G611899076
UPC #
-
Country of Origin
United States
Item
Piston Air Compressor
Lubrication Type
No Lubrication
Phase
Single
Voltage
100/120V AC, 200/240V AC
Flow Rate @ 40 psi @ 50 Hz
0 cfm
Valve Material
Stainless Steel
Nominal Efficiency Rating
42.0
Output Power
0.25 hp
Flow Rate @ 20 psi @ 50 Hz
0.2 cfm
Outlet Gender
Female
Power Source
Corded Electric
Mounting Style
Rigid Base
Pump Type
Rocking Piston
Includes Sound Shield
Sound Shield Included
Piston Type
Rocking
Outlet Type
NPT
Free Air Flow Rate
1.17 cfm, 1.44 cfm
Frequency
50 Hz, 60 Hz
Flow Rate @ 50 psi @ 50 Hz
0 cfm
Valve Type
Check, Relief
Maximum Speed
1,725 RPM
Duty Cycle
Continuous
Minimum Operating Temperature
32 Degrees F
Sound Level
48.1 dBA
Cylinder Material
Aluminum
Standards
CE, UL Listed
Maximum Continuous Pressure
125 psi
Control Type
Manual
Inlet Gender
Female
Flow Rate @ 0 psi @ 50 Hz
1.2 cfm
Maximum Operating Temperature
104 Degrees F
Life Expectancy
16,000 hr
Electrical Connection
Wired Leads
Motor Design
Capacitor Start
Exhaust Location
Top
Series
86R
Thermal Protection
Yes
Current Rating
1.0 A, 1.5 A, 1.8 A, 3.1 A
Inlet Type
NPT
Full-Load Air Consumption
1.44 cfm
Maximum Vacuum
26.2 in Hg
Compressor/Pump Enclosure Material
Aluminum; Ferrous Metals
Plug Type
Three Prong
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

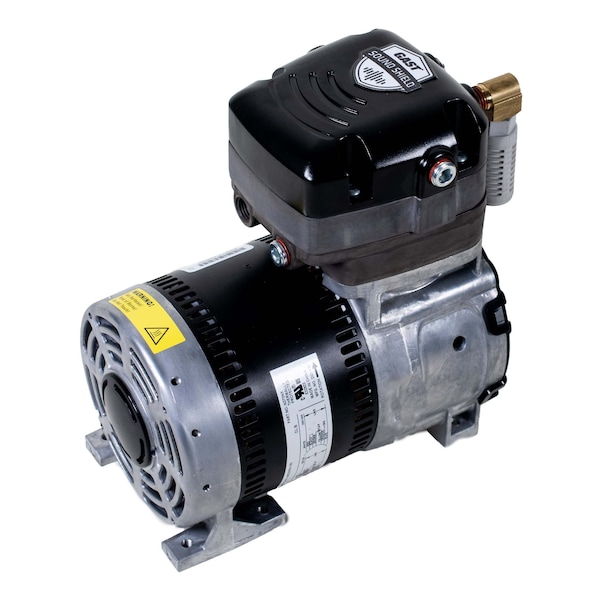

The Gast 86R130-VS101-N270X is an oil-free piston air compressor with a rocking-piston design. It operates on 100/120V AC, 200/240V AC single-phase power at 50 Hz, 60 Hz at a rated 1/4 hp output. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.17 cfm, a maximum continuous pressure of 125 psi, and a maximum vacuum of 26.2 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 1.0 A, 1.5 A, 1.8 A, 3.1 A, and a measured sound level of 48.1 dBA. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 7.71 x 5.08 x 8.66 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
