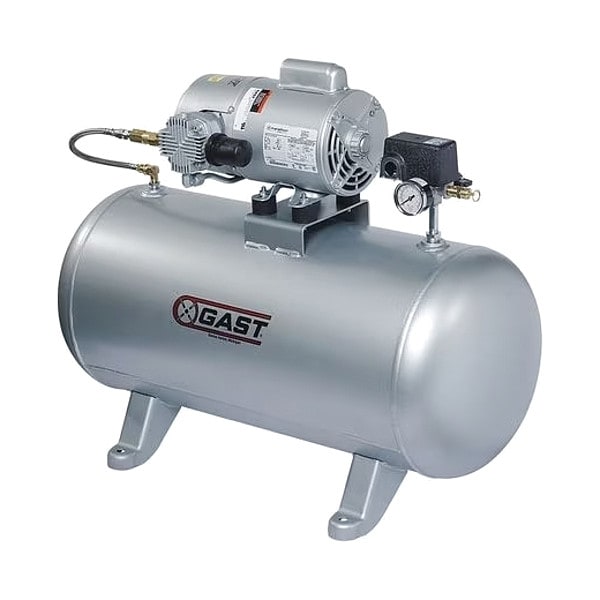

Gast Electric Air Compressor, Tank Mounted 5HCD-101T-M550NGX - main

Electric Air Compressor, Tank Mounted

  • Mfr # 5HCD-101T-M550NGX

  • Zoro # G2977107

product price: $1,851.99
/ea
Free Shipping & Returns

Key Features

Tank Size
2 gal.
Phase
Single
HP
3/4
Voltage
115/230
Tank Type
Horizontal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5HCD-101T-M550NGX
Zoro #
G2977107
UPC #
-
Country of Origin
United States

Dimensions

Tank Size
2 gal.
Overall Height
22 in
Overall Length
18 in
Overall Width
13 in
Tank Size - Air Compressor
2.0 gal
Inlet Size
1/4 in
Air Tank Size
2 gal
Outlet Size
1/4 in

Details

Phase
Single
HP
3/4
Voltage
115/230
Tank Type
Horizontal
Max. Pressure
100 psi
Includes
ASME Coded Tank, Globe valve, Manual Drain, Pressure Gauge, Pressure Safety Valve (ASME), Pressure Switch
Compressor Type
Tank Mounted
Free Air CFM @ Max. Pressure
4.7
Lubrication Type
Oil-Less
Compressor Package Type
Base Model
Standards
CSA
Pump Location - Air Compressor
Tank Mounted
Item
Electric Air Compressor
HP - Air Compressor
0.75 hp
Item - Air Compressor
Stationary Air Compressor
(F)NPT Outlet
1/4 in
Free Air CFM @ Max. Pressure - Air Compressor
4.7
Finish
Gray Paint
Amps
14.0/7.0
ASME Tank
Yes
Off Pressure Switch Setting
100 psi
On Pressure Switch Setting
70 psi
Style - Air Compressor
Simplex
Lubrication Type - Air compressor
Oil Free
Input Voltage - Air Compressor
120V AC, 240V AC
Number of Stages - Air Compressor
1
Max. Pressure - Air Compressor
100 psi
Phase - Electrical
1
Control
Automatic Start/Stop
Tank Style - Air Compressor
Hot Dog
Number of Stages
1
Pump Type
Piston
Duty Cycle
Continuous
Frequency
50 Hz, 60 Hz
Control Type
Automatic On/Off
Output Power
0.75 hp
Pump Style
Simplex
Pump Location
Top Mount
Outlet Gender
Female
Free Air Flow Rate @ Maximum Pressure
4.7 cfm
Outlet Type
NPT
Maximum Operating Pressure
100 psi
Input Voltage
120V AC, 240V AC
Air Tank Style
Hot Dog
Valve Type
Globe
Current Rating
14 A, 7 A
Type
Tank Mounted Oil-less

Description

Electric Air Compressor, Lubrication Type Oil-Less, Air Tank Style Hot Dog, Number of Stages 1, Output Power 0.75 hp, Free Air Flow Rate @ Maximum Pressure 4.7 cfm, Maximum Operating Pressure 100 psi, Air Tank Size 2 gal, Input Voltage 120V AC, 240V AC, Phase Single, Frequency 50 Hz, 60 Hz, Compressor Package Type Base Model, Pump Style Simplex, Pump Type Piston, Pump Location Top Mount
