Shop GAST

Gast 120R Rocking Piston Compressor

  • Mfr # 120R689-P101-N800NX

  • Zoro # G602017014


product price:
$
2,626.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Number of Cylinders
2
Phase
Single
Voltage
200-240V AC
Inlet Size
3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
120R689-P101-N800NX
Zoro #
G602017014
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
3/8 in
Outlet Size
3/8 in
Overall Length
15.4 in
Overall Height
12.6 in
Overall Width
10.5 in
Wire Rope Length
15.4 in
Length
15.4 in

Details

Item
Piston Air Compressor
Lubrication Type
Oil Free
Number of Cylinders
2
Phase
Single
Voltage
200-240V AC
Finish
Powder Coat
Thermal Protection
Automatic Reset
ASME Tank
No
Standards
UL
Cylinder Material
Steel
Duty Cycle
Continuous
Motor Design
Capacitor Run, Capacitor Start
Air Tank Style
Tankless
Power Source
Corded Electric
Outlet Gender
Female
Engine Enclosure Material
Steel
Inlet Gender
Female
Flow Rate @ 20 psi @ 50 Hz
8.3 scfm
Minimum Operating Temperature
32 Degrees F
Mounting Style
Rigid Base
Maximum Vacuum
28 in Hg
Maximum Intermittent Pressure
145 psi
Flow Rate @ 40 psi @ 50 Hz
7.9 scfm
Life Expectancy
20,000 hr
Electrical Connection
Wired Leads
Free Air Flow Rate
12 scfm
Maximum Speed
1,725 RPM
Frequency
60 Hz
Maximum Continuous Pressure
145 psi
Pump Type
Rocking Piston
Output Power
2 hp
Piston Type
Rocking
Current Rating
9.5 A
Maximum Operating Temperature
104 Degrees F
Outlet Type
NPT
Sound Level
75 dBA
Flow Rate @ 0 psi @ 50 Hz
10 scfm
Flow Rate @ 50 psi @ 50 Hz
7.7 scfm
Exhaust Location
Top
Inlet Type
NPT
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

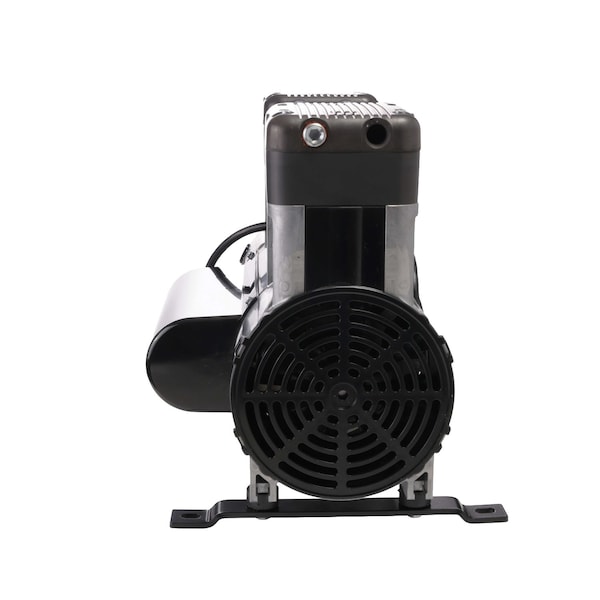

The Gast 120R689-P101-N800NX is an oil-free, twin-cylinder piston air compressor with a rocking-piston design. It operates on 200-240V AC single-phase power at 60 Hz at a rated 2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 12 scfm, a maximum continuous pressure of 145 psi, and a maximum vacuum of 28 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 9.5 A, and a measured sound level of 75 dBA. The operating temperature range is 32 to 104°F. Construction includes a steel cylinder, and a capacitor-start motor. Air connections are 3/8 in NPT inlet and outlet. Overall dimensions are 15.4 x 10.5 x 12.6 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 20,000 hr.
