Shop GAST

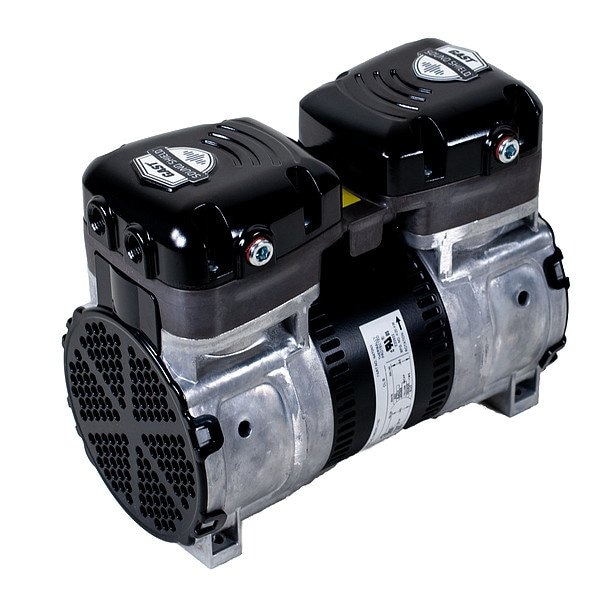

Piston Air Compressor, Rocking, 0.5 hp

  • Mfr # 87R647-PS101-N470X

  • Zoro # G611934937

product price:
$
1,021.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
No Lubrication
Phase
Single
Voltage
115/120V AC, 230/240V AC
Inlet Size
1/4 in
Outlet Size
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
87R647-PS101-N470X
Zoro #
G611934937
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
9.53 in
Overall Height
7.88 in
Overall Width
5.07 in
Mounting Hole Diameter
1/4 in
Wire Rope Length
9.53 in
Length
9.53 in

Details

Item
Piston Air Compressor
Lubrication Type
No Lubrication
Phase
Single
Voltage
115/120V AC, 230/240V AC
Pump Type
Rocking Piston
Flow Rate @ 50 psi @ 50 Hz
0 cfm
Cylinder Material
Aluminum
Piston Type
Rocking
Inlet Type
NPT
Nominal Efficiency Rating
42.0
Minimum Operating Temperature
32 Degrees F
Flow Rate @ 20 psi @ 50 Hz
3.1 cfm
Free Air Flow Rate
4.8 cfm
Electrical Connection
Wired Leads
Series
87R
Outlet Gender
Female
Inlet Gender
Female
Maximum Continuous Pressure
30 psi
Full-Load Air Consumption
4.8 cfm
Duty Cycle
Continuous
Motor Design
Capacitor Start
Plug Type
Three Prong
Thermal Protection
Yes
Control Type
Manual
Valve Type
Check, Relief
Life Expectancy
16,000 hr
Standards
CE, cUSus, UKCA
Maximum Speed
1,725 RPM
Flow Rate @ 40 psi @ 50 Hz
0 cfm
Flow Rate @ 0 psi @ 50 Hz
4 cfm
Mounting Style
Rigid Base
Compressor/Pump Enclosure Material
Aluminum; Ferrous Metals
Maximum Operating Temperature
104 Degrees F
Maximum Vacuum
24.8 in Hg
Frequency
50 Hz, 60 Hz
Sound Level
60 dBA
Output Power
0.5 hp
Outlet Type
NPT
Valve Material
Stainless Steel
Includes Sound Shield
Sound Shield Included
Exhaust Location
Top
Power Source
Corded Electric
Current Rating
5.1 A, 6.2 A
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

The Gast 87R647-PS101-N470X is an oil-free piston air compressor with a rocking-piston design. It operates on 115/120V AC, 230/240V AC single-phase power at 50 Hz, 60 Hz at a rated 1/2 hp output. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 4.8 cfm, a maximum continuous pressure of 30 psi, and a maximum vacuum of 24.8 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 5.1 A, 6.2 A, and a measured sound level of 60 dBA. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.53 x 5.07 x 7.88 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
