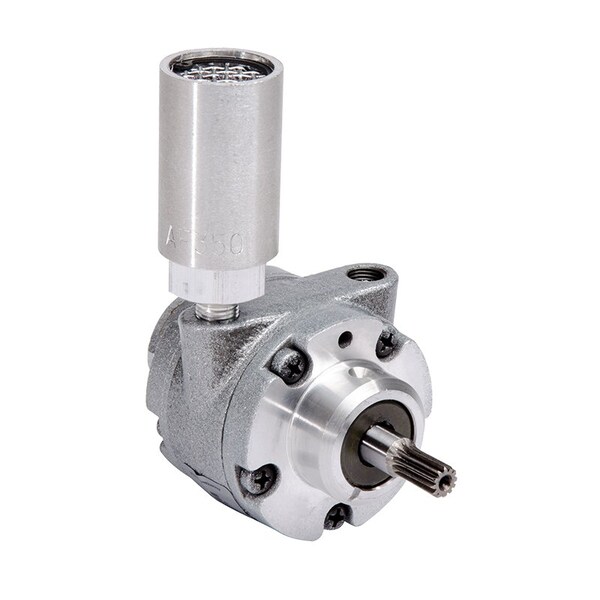

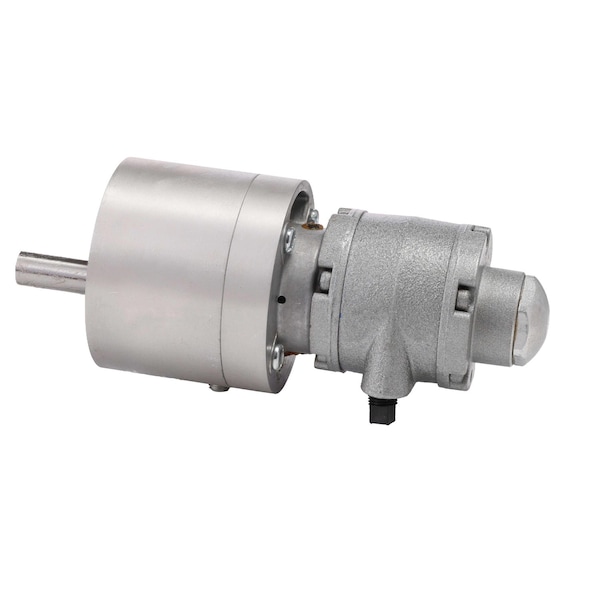

Gast Standard 1Am-Nrv-56 Air Motor

  • Mfr # 1AM-NRV-56

  • Zoro # G0602677

product price:
$
318.99
/ea
Free Shipping & Returns

Key Features

Motor Design
AIR
Rotation
CW/CCW
Overall Length
4 in
Mount Type
Hub
Includes
Muffler
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1AM-NRV-56
Zoro #
G0602677
UPC #
-
Country of Origin
United States
Item
Air Motor
Motor Design
AIR
Rotation
CW/CCW
Mount Type
Hub
Includes
Muffler
Standards
ATEX
Weight
2 lb
Series
1AM
Minimum Ambient Temperature
34 Degrees F
Housing Material Finish
Painted
Minimum Operating Pressure
1 psi
Housing Material Grade
G2500
Shaft Material Grade
4140
Output Power @ 50% Maximum Speed
0.35 hp
Shaft Material
Steel
Output Power @ 25% Maximum Speed
0.25 hp
Air Inlet Type
NPT
Maximum Flow Rate
22 cfm
Air Consumption
22 cfm
Mounting Orientation
Any Angle
System of Measurement
Inch
Nameplate Speed
10,000 RPM
Air Inlet Center to Center Distance
1 3/4 in
No Load Speed
10,000 RPM
Starting Torque
5 in-lb
Output Power @ Maximum Speed
0.38 hp
Maximum Ambient Temperature
248 Degrees F
Minimum Flow Rate
1 cfm
Motor Frame Material
Cast Iron
Maximum Operating Pressure
100 psi
Housing Material
Cast Iron
Maximum Torque
2.7 in-lb
Inlet Gender
Female
Shaft Orientation
Inline
Max. Air Pressure
101.53 psi
Number of Vanes
4
Output Shaft Type
Spline

Description

Air Motor, Output Power @ Maximum Speed 0.38 hp, Maximum Torque 2.7 in-lb, No Load Speed 10,000 RPM, Maximum Flow Rate 22 cfm, Shaft Diameter 1/4 in, Shaft Length 1 in, Mount Type Hub, Inlet Size 1/8 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 4140, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width Not Applicable, Weight 2 lb, Housing Material Grade G2500, Housing Material Finish Painted
