  11. Gast Standard 1Am-Nrv-63A Air Motor
Shop All Air Motors
Gast

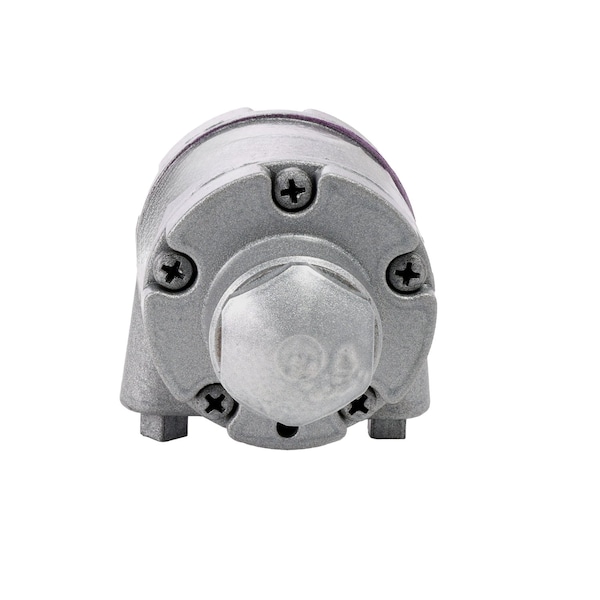

Gast Standard 1Am-Nrv-63A Air Motor

product price: $285.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design AIR
  • Rotation CW/CCW
  • Overall Length 4 1/4 in
  • Includes Muffler
  • Shaft Length 1 1/8 in
See all product information

Product Information

  • Brand Gast
  • MFR # 1AM-NRV-63A
  • Zoro # G1176135
  • Country of Origin United States
  • Category Air Motors

Dimensions

Overall Length 4 1/4 in
Shaft Length 1 1/8 in
Length Less Shaft 3 1/10 in
Overall Height 2 1/4 in
Overall Width 2 1/2 in
Outside Diameter 2 1/2 in
Inlet Size 1/8 in
Manufacturers Warranty Length 1 yr
Shaft Diameter 3/8 in

Details

Item Gast Standard 1Am-Nrv-63A Air Motor
Motor Design AIR
Rotation CW/CCW
Includes Muffler
Standards ATEX
Mount Type Hub
Weight 2 lb
Shaft Material Grade 197-223 BHN
Air Consumption 22 cfm
Mounting Orientation Any Angle
Housing Material Grade G2500
System of Measurement Inch
Output Power @ 50% Maximum Speed 0.35 hp
Starting Torque 5 in-lb
Minimum Ambient Temperature 34 Degrees F
Minimum Operating Pressure 1 psi
Nameplate Speed 10,000 RPM
Minimum Flow Rate 1 cfm
Housing Material Finish Painted
Maximum Ambient Temperature 248 Degrees F
Air Inlet Type NPT
Series 1AM
No Load Speed 10,000 RPM
Maximum Flow Rate 22 cfm
Output Power @ Maximum Speed 0.38 hp
Air Inlet Center to Center Distance 1 3/4 in
Output Power @ 25% Maximum Speed 0.25 hp
Shaft Material Steel
Inlet Gender Female
Housing Material Cast Iron
Maximum Operating Pressure 100 psi
Motor Frame Material Cast Iron
Maximum Torque 2.7 in-lb
Shaft Orientation Inline
Number of Vanes 8

Description

Gast Standard 1Am-Nrv-63A Air Motor, Output Power @ Maximum Speed 0.38 hp, Maximum Torque 2.7 in-lb, No Load Speed 10,000 RPM, Maximum Flow Rate 22 cfm, Shaft Diameter 3/8 in, Shaft Length 1 1/8 in, Mount Type Hub, Inlet Size 1/8 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 197-223 BHN, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width Not Applicable, Weight 2 lb, Housing Material Grade G2500
