Shop GAST

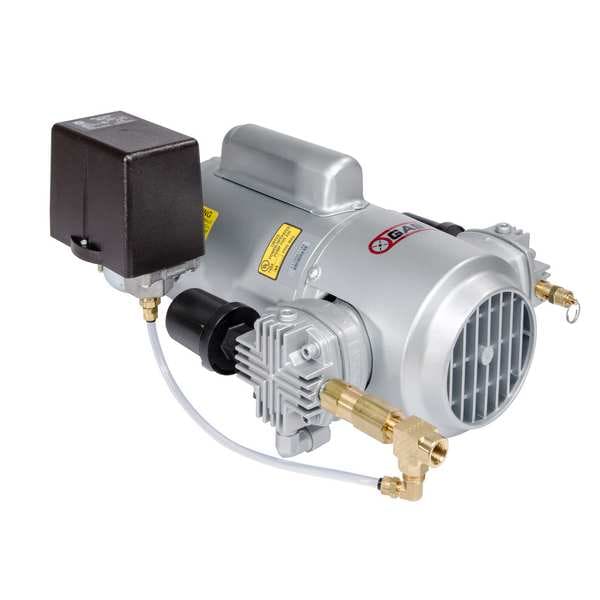

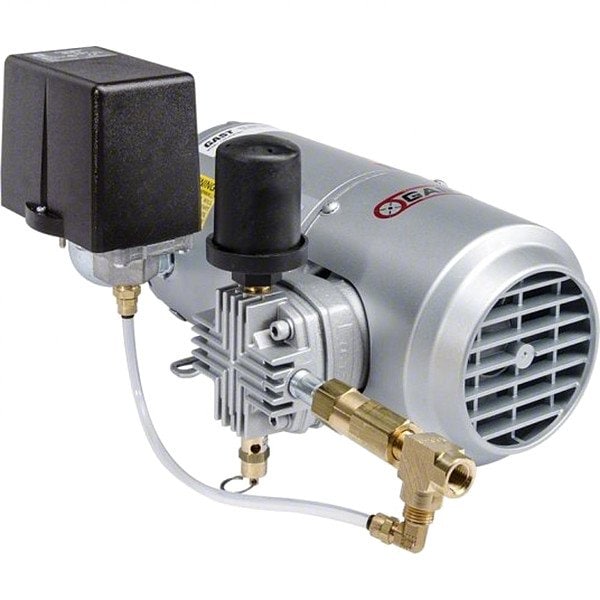

Gast Standard 3Lba-32-M300Ax Piston Pump

  • Mfr # 3LBA-32-M300AX

  • Zoro # G1175931

product price:  $1,429.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oilless
Number of Cylinders
2
Phase
Single
Voltage
115V AC
Inlet Size
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3LBA-32-M300AX
Zoro #
G1175931
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
14.21 in
Overall Height
8.11 in
Overall Width
11.35 in

Details

Item
Piston Air Compressor
Lubrication Type
Oilless
Number of Cylinders
2
Phase
Single
Voltage
115V AC
Finish
Painted
Cylinder Material
Aluminum
Standards
NFPA 13
Thermal Protection
Yes
Maximum Continuous Pressure
50 psi
Sound Level
75 dBA
Air Tank Style
Tankless
Maximum Speed
1,725 RPM
Free Air Flow Rate
3 cfm
Output Power
0.333 hp
Minimum Operating Temperature
41 Degrees F
Maximum Operating Temperature
104 Degrees F
Maximum Intermittent Pressure
50 psi
Inlet Type
NPT
Piston Type
Reciprocating
Outlet Type
NPT
Pump Type
Piston
Valve Material
Stainless Steel
Power Source
Corded Electric
Control Type
Pressure Switch
Series
Gast
Frequency
60 Hz
Duty Cycle
Continuous
Outlet Gender
Female
Exhaust Location
Front
Enclosure Rating
IP20
Compressor/Pump Enclosure Material
Aluminum/Plastic
Inlet Gender
Female
Engine Enclosure Material
Steel
Enclosure Type
Clean Dust Free
Motor Design
Capacitor Start
Life Expectancy
16,000 hr
Electrical Connection
Spade Terminal
Valve Type
Reed

Description

Piston Air Compressor, Lubrication Type Oilless, Number of Cylinders 2, Output Power 0.333 hp, Phase Single, Voltage 115V AC, Maximum Continuous Pressure 50 psi, Maximum Intermittent Pressure 50 psi, Maximum Vacuum Not Applicable, Free Air Flow Rate 3 cfm, Maximum Speed 1,725 RPM, Inlet Size 1/4 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 1/4 in, Outlet Type NPT, Outlet Gender Female
