Shop THOMAS

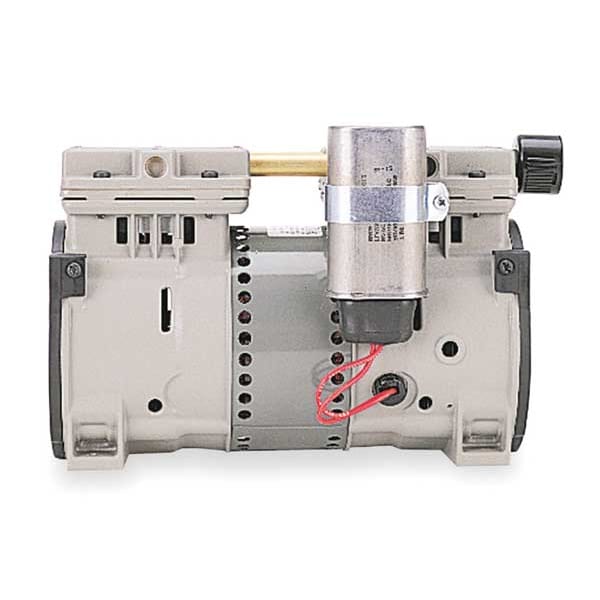

Piston Air Compressor/Vacuum Pump, 1/3HP

  • Mfr # 2688CE44

  • Zoro # G2878915

product price:
$
533.99
/ea
Free Shipping & Returns

Key Features

Number of Cylinders
2
HP
1/3 hp
Phase
Single
Voltage
115V AC
Inlet Size
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2688CE44
Zoro #
G2878915
UPC #
-
Country of Origin
United States
Item
Piston Air Compressor/Vacuum Pump
Number of Cylinders
2
HP
1/3 hp
Phase
Single
Voltage
115V AC
Sound Rating
63 dBA @ 60 psi
RPM
1750
Cylinder Material
Aluminum
Hz
60
Max. PSI Cont./Int.
25/25
Full Load Amps
4.7 A
Valve
Corrosion Resistant Sandwich
Free Air CFM @ 20 In. Hg
0.64
Power Cord
Yes
Free Air CFM @ 10 In. Hg
1.6
Max. Vacuum
27.6 in Hg
Free Air CFM @ 0 PSI
3.15
Free Air CFM @ 20 PSI
2.72
Free Air CFM @ 0 In. Hg
3.15
Thermal Protection
Yes
Standards
CSA, UL
Temp. Range
104 Degrees to 50 Degrees F
Motor Type
Shaded Pole, Thermally Protected with High Torque Start Winding
Finish
Paint
Sound Level
63 dBA
Current Rating
4.7 A
Maximum Vacuum
27.6 in Hg
Frequency
60 Hz
Output Power
0.333 hp
Power Source
Corded Electric
Electrical Connection
Cord With Plugs
Piston Type
WOB-L
Maximum Intermittent Pressure
25 psi
Inlet Type
NPT
Valve Type
Corrosion Resistant Sandwich
Maximum Operating Temperature
104 Degrees F
Minimum Operating Temperature
50 Degrees F
Free Air Flow Rate
3.15 cfm
Maximum Speed
1,750 RPM
Maximum Continuous Pressure
25 psi
Duty Cycle
Continuous
Air Tank Style
Tankless
Pump Type
WOB-L Piston
Outlet Type
NPT
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

The Thomas 2688CE44 is a twin-cylinder piston air compressor and vacuum pump with a WOB-L (wobble) piston design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/3 hp output, in a tankless configuration. It provides a free-air delivery ranging from 2.72 CFM at 20 psi up to 3.15 CFM at 0 psi, a maximum continuous pressure of 25 psi, and a maximum vacuum of 27.6 in Hg. It is rated at a maximum speed of 1,750 RPM, a full-load current of 4.7 A, and a measured sound level of 63 dBA (@ 60 psi). The operating temperature range is 50-104°F. Construction includes an aluminum cylinder, a shaded-pole motor (thermally protected, with a high-torque start winding), and corrosion-resistant sandwich valves in stainless steel. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.625 x 6.75 x 7.1 in (L x W x H). Country of origin: United States.
