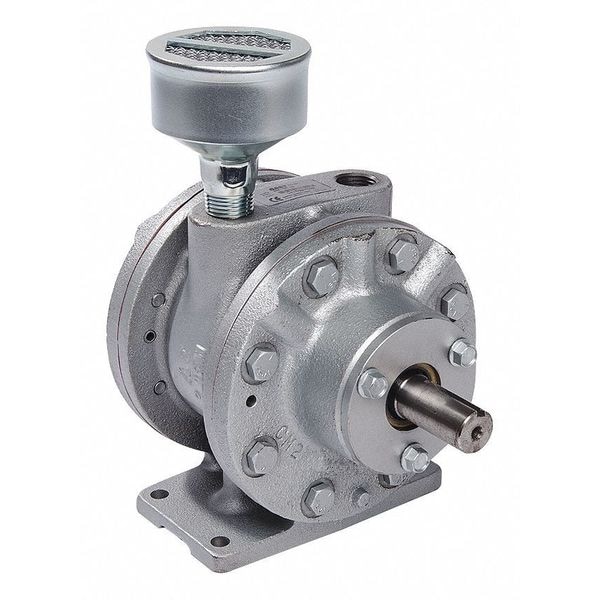

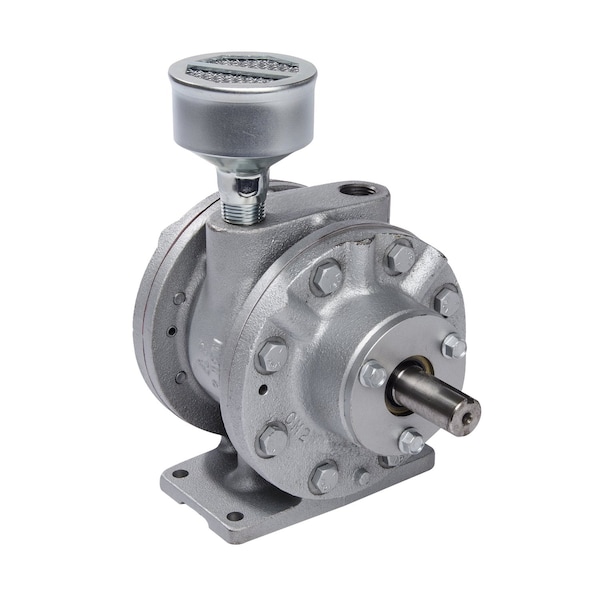

Gast Standard 8Am-Frv-30A Air Motor

  • Mfr # 8AM-FRV-30A

  • Zoro # G0602397

product price:
$
1,004.99
/ea
Free Shipping & Returns

Key Features

Motor Design
AIR
Rotation
CW/CCW
Overall Length
8 1/2 in
Shaft Length
1 1/2 in
Mount Type
Foot
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
8AM-FRV-30A
Zoro #
G0602397
UPC #
-
Country of Origin
United States
Item
Air Motor
Motor Design
AIR
Rotation
CW/CCW
Mount Type
Foot
Includes
Muffler
Standards
ATEX
Keyway Type
Square
Maximum Flow Rate
175 cfm
System of Measurement
Inch
Minimum Ambient Temperature
34 Degrees F
Maximum Ambient Temperature
248 Degrees F
Air Inlet Center to Center Distance
2 3/4 in
Weight
27 lb
Output Power @ 50% Maximum Speed
3.4 hp
Nameplate Speed
2,500 RPM
Output Power @ Maximum Speed
5 hp
Starting Torque
150 in-lb
Mounting Orientation
Any Angle
Series
8AM
Output Power @ 25% Maximum Speed
2 hp
Minimum Operating Pressure
20 psi
No Load Speed
2,500 RPM
Air Inlet Type
NPT
Minimum Flow Rate
20 cfm
Air Consumption
175 cfm
Housing Material Finish
Painted
Housing Material Grade
G2500
Shaft Material
Steel
Maximum Operating Pressure
100 psi
Maximum Torque
132 in-lb
Housing Material
Cast Iron
Inlet Gender
Female
Motor Frame Material
Cast Iron
Shaft Orientation
Inline
Max. Air Pressure
101.53 psi
Number of Vanes
8
Output Shaft Type
Keyed

Description

Air Motor, Output Power @ Maximum Speed 5 hp, Maximum Torque 132 in-lb, No Load Speed 2,500 RPM, Maximum Flow Rate 175 cfm, Shaft Diameter 3/4 in, Shaft Length 1 1/2 in, Mount Type Foot, Inlet Size 1/2 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade Not Applicable, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 27 lb, Housing Material Grade G2500, Housing Material Finish Painted
