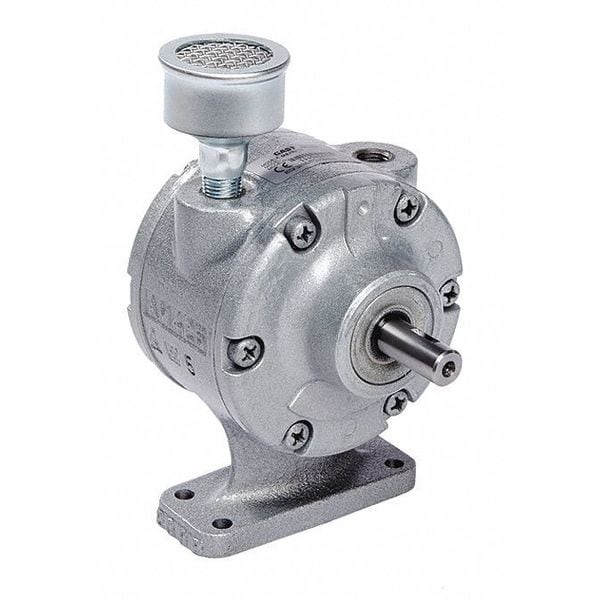

Stock 30/Skid 4Am-Nrv-54A Air Motor

  • Mfr # 4AM-NRV-54A

  • Zoro # G0602537

product price:
$
476.99
/ea
Free Shipping & Returns

Key Features

Motor Design
AIR
Rotation
CW/CCW
Overall Length
5 3/4 in
Standards
ATEX
Mount Type
Face, Hub
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4AM-NRV-54A
Zoro #
G0602537
UPC #
-
Country of Origin
United States
Item
Air Motor
Motor Design
AIR
Rotation
CW/CCW
Standards
ATEX
Mount Type
Face, Hub
Includes
Muffler
Mounting Orientation
Any Angle
No Load Speed
3,000 RPM
Minimum Flow Rate
5 cfm
Housing Material Grade
G2500
Weight
7 lb
Shaft Material Grade
197-223 BHN
Air Inlet Center to Center Distance
2 1/2 in
Output Power @ Maximum Speed
1.7 hp
System of Measurement
Inch
Keyway Type
Woodruff
Output Power @ 50% Maximum Speed
1.1 hp
Shaft Material
Steel
Series
4AM
Starting Torque
32 in-lb
Output Power @ 25% Maximum Speed
0.65 hp
Air Consumption
72 cfm
Housing Material Finish
Painted
Maximum Flow Rate
72 cfm
Nameplate Speed
3,000 RPM
Minimum Operating Pressure
20 psi
Air Inlet Type
NPT
Minimum Ambient Temperature
34 Degrees F
Maximum Ambient Temperature
248 Degrees F
Maximum Torque
35 in-lb
Inlet Gender
Female
Housing Material
Cast Iron
Maximum Operating Pressure
100 psi
Motor Frame Material
Cast Iron
Shaft Orientation
Inline
Max. Air Pressure
101.53 psi
Number of Vanes
8
Output Shaft Type
Keyed

Description

Air Motor, Output Power @ Maximum Speed 1.7 hp, Maximum Torque 35 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 72 cfm, Shaft Diameter 1/2 in, Shaft Length 1 1/8 in, Mount Type Face, Hub, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 197-223 BHN, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 7 lb, Housing Material Grade G2500, Housing Material Finish Painted
