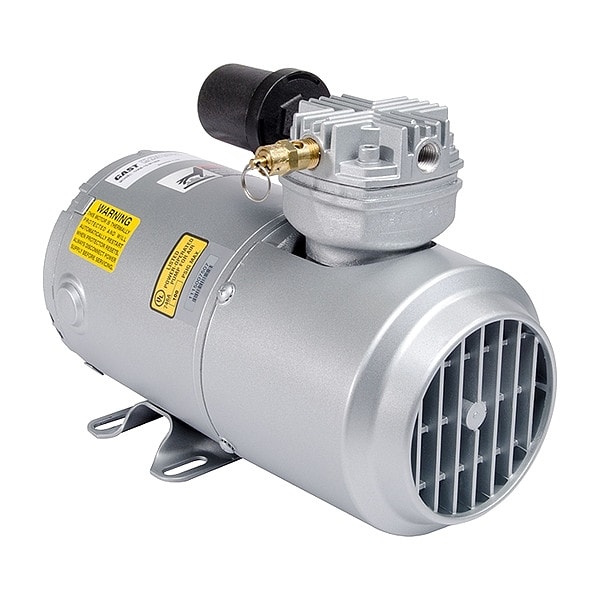

Gast Piston Air Compressor, 1/3HP, 12VDCV 2HAH-251-M322A - main

Piston Air Compressor, 1/3HP, 12VDCV

  • Mfr # 2HAH-251-M322A

  • Zoro # G0948771

product price: $1,061.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Number of Cylinders
1
HP
1/3 hp
Phase
Single
Voltage
12V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2HAH-251-M322A
Zoro #
G0948771
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
14 in
Overall Height
8.625 in
Overall Width
5.625 in

Details

Item
Piston Air Compressor
Lubrication Type
Oil Free
Number of Cylinders
1
HP
1/3 hp
Phase
Single
Voltage
12V DC
Sound Rating
Less Than75 dBA
Valve
High Strength, Low Lift Stainless Steel
Free Air CFM @ 20 PSI
1.4
Free Air CFM @ 100 PSI
0.85
Thermal Protection
Automatic Reset
Free Air CFM @ 0 PSI
1.85
Max. PSI Cont./Int.
100/100
Cylinder Material
Aluminum
RPM
1800
Motor Type
Open
Finish
Paint
Full Load Amps
46
Free Air CFM @ 50 PSI
1.1
Temp. Range
32 Degrees to 100 Degrees F
Valve Material
Stainless Steel
Current Rating
46 A
Free Air Flow Rate
2.1 cfm
Maximum Intermittent Pressure
100 psi
Valve Type
High Strength, Low Lift Stainless Steel
Maximum Operating Temperature
100 Degrees F
Air Tank Style
Tankless
Outlet Type
NPT
Pump Type
Piston
Maximum Speed
1,800 RPM
Sound Level
75 dBA
Output Power
0.333 hp
Duty Cycle
Continuous
Minimum Operating Temperature
32 Degrees F
Maximum Continuous Pressure
100 psi
Piston Type
Reciprocating
Inlet Type
NPT

Description

Piston Air Compressor, Lubrication Type Oil Free, Number of Cylinders 1, Output Power 0.333 hp, Phase Single, Voltage 12V DC, Maximum Continuous Pressure 100 psi, Maximum Intermittent Pressure 100 psi, Free Air Flow Rate 2.1 cfm, Maximum Speed 1,800 RPM, Inlet Size 1/4 in, Inlet Type NPT, Outlet Size 1/4 in, Outlet Type NPT
