Piston Air Compressor, Size 1/4", 1725 RPM

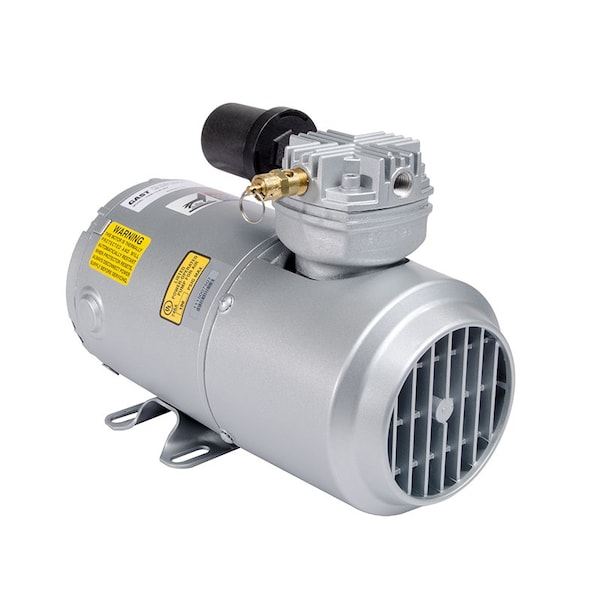

The Gast 1VAF-10-M100X is an oil-free, single-cylinder piston air compressor with a reciprocating design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/6 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.8 cfm, and a maximum vacuum of 27.5 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 4.45 A, and a measured sound level of 70 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, an induction motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 11.53 x 5.62 x 8.61 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
