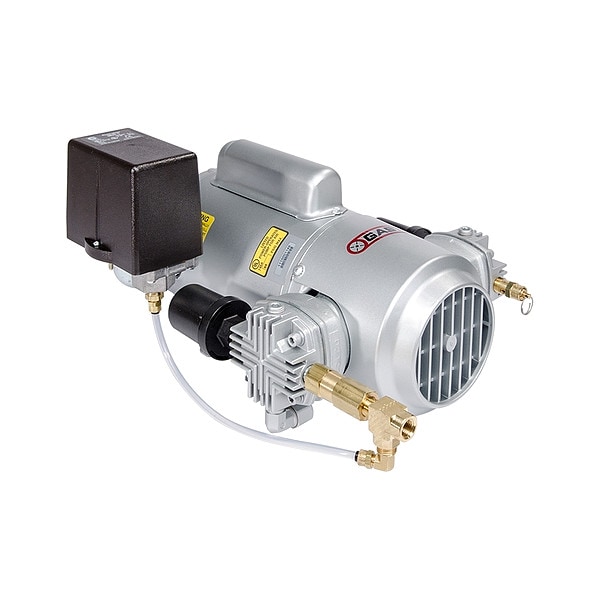

Piston Air Compressor, Piston Pump

  • Mfr # 3LBA-46S-M300AX

  • Zoro # G911677664


product price: $2,174.99
/ea
Free Shipping & Returns

Key Features

Number of Cylinders
2
Phase
Single
Voltage
115/230V AC
Inlet Size
1/4 in
Outlet Size
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3LBA-46S-M300AX
Zoro #
G911677664
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
15.55 in
Overall Height
8.11 in
Overall Width
12.35 in

Details

Item
Piston
Number of Cylinders
2
Phase
Single
Voltage
115/230V AC
Thermal Protection
Yes
Standards
UL 1450 Listed
Finish
Anodized
Mounting Style
Rigid Surface
Electrical Connection
Cord with Plugs
Exhaust Location
Top
Pump Type
Piston
Series
3L
Life Expectancy
1 yr
Output Power
0.333 hp
Outlet Type
NPT
Valve Material
Stainless Steel
Power Source
Corded Electric
Frequency
60 Hz
Includes Sound Shield
Sound Shield Not Included
Duty Cycle
Continuous
Maximum Speed
1,725 RPM
Valve Type
Check
Sound Level
75 dBA
Maximum Operating Temperature
104 Degrees F
Minimum Operating Temperature
41 Degrees F
Maximum Continuous Pressure
50 psi
Plug Type
Three Prong
Free Air Flow Rate
2 cfm
Air Tank Style
Tankless
Control Type
Pressure Switch
Piston Type
Reciprocating
Maximum Intermittent Pressure
50 psi
Inlet Type
NPT

Description

Piston Air Compressor, Lubrication Type Not Applicable, Number of Cylinders 2, Output Power 0.333 hp, Phase Single, Voltage 115/230V AC, Maximum Continuous Pressure 50 psi, Maximum Intermittent Pressure 50 psi, Maximum Vacuum Not Applicable, Free Air Flow Rate 2 cfm, Maximum Speed 1,725 RPM, Inlet Size 1/4 in, Inlet Type NPT, Inlet Gender Not Applicable, Outlet Size 1/4 in, Outlet Type NPT, Outlet Gender Not Applicable
